A4 Mk3
Power transmission
6-speed manual gearbox 0B3, front-wheel drive
Technical data
Gearbox identification
Gearbox identification
Gearbox identification
Allocation
→ Chapter „Code letters, allocation, transmission ratios, capacities“
.

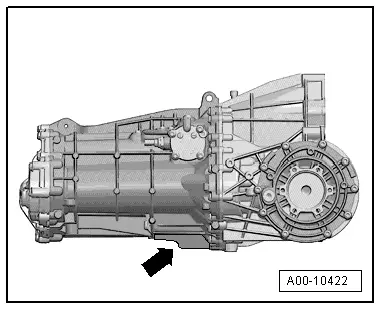

Location on gearbox
t
-Arrow-
code letters, serial number and gearbox part number

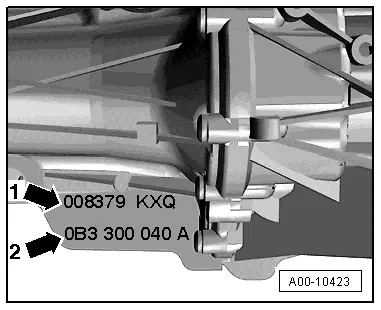

→ Fig.
-Arrow 1-
gearbox code letters and consecutive serial number
Example:
008379
KXQ
Serial number
Code letters
-Arrow 2-
manual gearbox „0B3“ with gearbox Part No. (e.g. 0B3 300 040 A)
Note
The code letters for the gearbox are also given on the vehicle data stickers.
Power transmission
6-speed manual gearbox 0B3, front-wheel drive
Technical data
Gearbox identification
