Renewing protective ring on propshaft flange Special tools and workshop equipment required

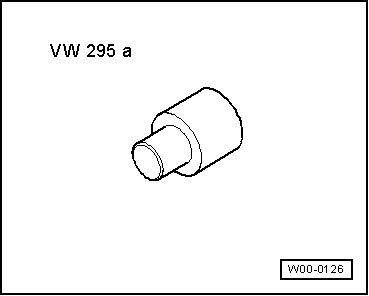

t  Adapter -VW 295 A-

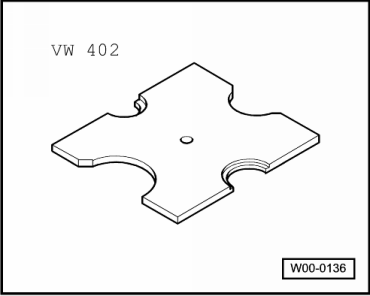

t  Thrust plate -VW 402-

t  Press tool -VW 408 A-

t  Support rails -VW 457-

t  -3-Splitter 22...75 mm, e.g. -Kukko 17/1-

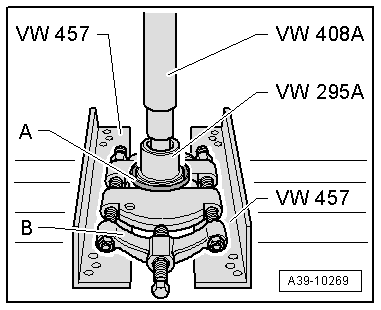

Pressing protective ring -A- off propshaft flange B -  Splitter 12...75 mm, e.g. -Kukko 17/1-

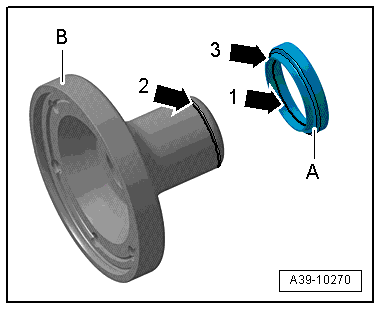

Installation position of protective ring -A- on propshaft flange l  The projecting ridge -arrow 1- on the protective ring -A- must be fitted in the annular groove -arrow 2- on the flange -B-. The smaller outside diameter -arrow 3- then faces towards the flange.

Pressing protective ring -A- onto propshaft flange l  The protective ring -A- must engage in the annular groove on the flange → Fig..
