A4 Mk3

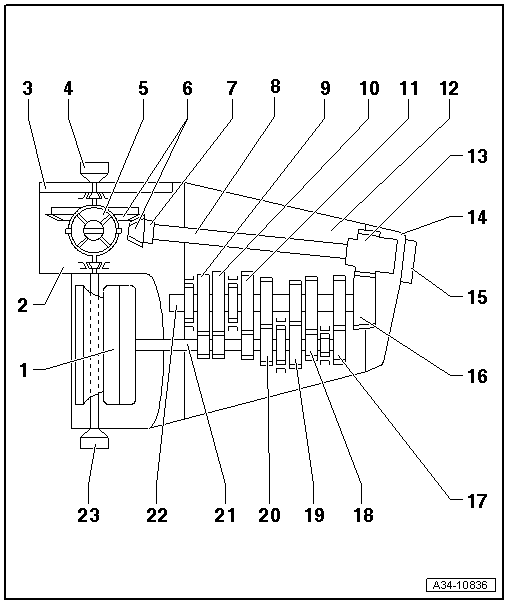

General layout of gearbox |
1 - | Clutch module |
q | Consists of pressure plate, clutch plate and dual-mass flywheel with flange for drive plate |
2 - | Gearbox housing |
3 - | Cover for final drive |
4 - | Flange shaft (right-side) |
5 - | Differential |
q | With crown wheel |
6 - | Final drive gear set |
q | Pinion shaft with crown wheel/ differential |
7 - | Double angular contact ball bearing |
8 - | Pinion shaft |
9 - | Reverse gear |
10 - | 1st gear |
11 - | 2nd gear |
12 - | Gearbox cover |
13 - | Output gear/spur gear mechanism |
14 - | End cover |
15 - | Sealing cap |
q | For pinion shaft mounting |
16 - | Input gear/spur gear mechanism |
17 - | 4th gear |
18 - | 3rd gear |
19 - | 6th gear |
20 - | 5th gear |
21 - | Input shaft |
22 - | Output shaft |
23 - | Flange shaft (left-side) |
