Diagram of coolant hose connections
Diagram of coolant hose connections
  Note
t  Blue = Large coolant circuit.
t  Red = Small coolant circuit.
t  Orange = Coolant circuit for charge air cooler.
t  Brown = Heating circuit.
t  Arrows show direction of coolant flow.

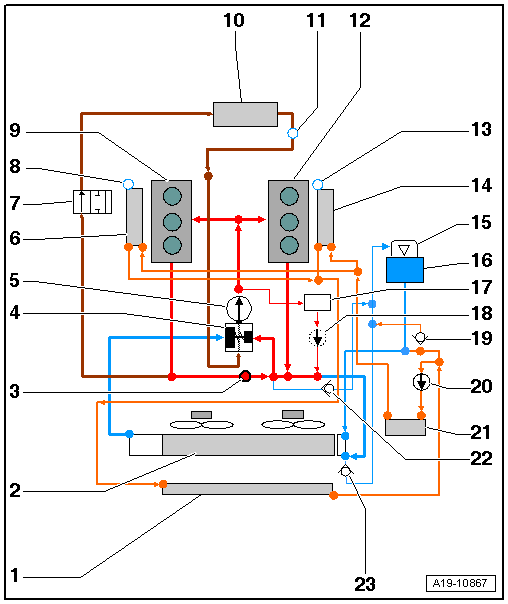

Vehicles without auxiliary heater
1 - Water radiator (front) for charge air cooling circuit
q   If renewed, refill system with fresh coolant
2 - Radiator
q   Vehicles with dual clutch gearbox: with integrated ATF cooler
q   If renewed, refill system with fresh coolant
3 - Coolant temperature sender -G62-
4 - Thermostat
5 - Coolant pump
6 - Charge air cooler (right-side)
q   In supercharger housing
q   If renewed, refill system with fresh coolant
7 - Coolant shut-off valve
q   Activated via Climatronic coolant shut-off valve -N422-
q   Climatronic coolant shut-off valve -N422- is activated via Climatronic control unit -J255-
q   Removing and installing → Rep. gr.87
8 - Bleeder screw
9 - Cylinder head, bank 1 (right-side)
q   If renewed, refill system with fresh coolant
10 - Heat exchanger for heater
q   Removing and installing → Rep. gr.87
q   If renewed, refill system with fresh coolant
11 - Bleeder hole
12 - Cylinder head, bank 2 (left-side)
q   If renewed, refill system with fresh coolant
13 - Bleeder screw
14 - Charge air cooler (left-side)
q   In supercharger housing
q   If renewed, refill system with fresh coolant
15 - Filler cap for expansion tank
q   Checking pressure relief valve →
16 - Coolant expansion tank
17 - Engine oil cooler
18 - Continued coolant circulation pump -V51-
q   Country-specific version
19 - Non-return valve
q   Located in coolant hose
20 - Charge air cooling pump -V188-
21 - Water radiator (left-side) for charge air cooling circuit
q   If renewed, refill system with fresh coolant
22 - Non-return valve
q   Located in coolant hose
23 - Non-return valve
q   Located in coolant hose

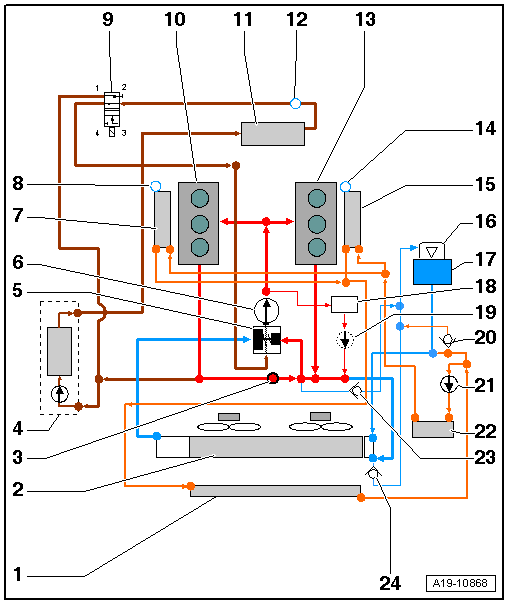

Vehicles with auxiliary heater
1 - Water radiator (front) for charge air cooling circuit
q   If renewed, refill system with fresh coolant
2 - Radiator
q   Vehicles with dual clutch gearbox: with integrated ATF cooler
q   If renewed, refill system with fresh coolant
3 - Coolant temperature sender -G62-
4 - Auxiliary heater
q   With circulation pump -V55-
q   Removing and installing → Rep. gr.82
5 - Thermostat
6 - Coolant pump
7 - Charge air cooler (right-side)
q   In supercharger housing
q   If renewed, refill system with fresh coolant
8 - Bleeder screw
9 - Climatronic coolant shut-off valve -N422-
q   Removing and installing → Rep. gr.87
q   Activated via Climatronic control unit -J255-
10 - Cylinder head, bank 1 (right-side)
q   If renewed, refill system with fresh coolant
11 - Heat exchanger for heater
q   Removing and installing → Rep. gr.87
q   If renewed, refill system with fresh coolant
12 - Bleeder hole
13 - Cylinder head, bank 2 (left-side)
q   If renewed, refill system with fresh coolant
14 - Bleeder screw
15 - Charge air cooler (left-side)
q   In supercharger housing
q   If renewed, refill system with fresh coolant
16 - Filler cap for expansion tank
q   Checking pressure relief valve →
17 - Coolant expansion tank
18 - Engine oil cooler
19 - Continued coolant circulation pump -V51-
q   Country-specific version
20 - Non-return valve
q   Located in coolant hose
21 - Charge air cooling pump -V188-
22 - Water radiator (left-side) for charge air cooling circuit
q   If renewed, refill system with fresh coolant
23 - Non-return valve
q   Located in coolant hose
24 - Non-return valve
q   Located in coolant hose
