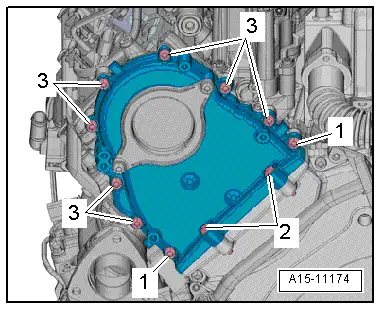

| Install timing chain cover (left-side) and tighten bolts → Fig.. |
Remaining installation steps are carried out in reverse sequence; note the following: |
–
| Install coolant pipe (rear left): engine codes CAMA, CAMB, CAPA → Chapter; engine codes CCLA, CCWA, CCWB, CGKA, CGKB → Chapter. |
–
| Install intermediate pipe (left-side) → Chapter. |
–
| Install particulate filter: A5 up to vehicle identification no. 8T-8-009 998 → Chapter; A4 (all), A5 from vehicle identification no. 8T-8-009 999 onwards → Chapter. |
|
|
|
