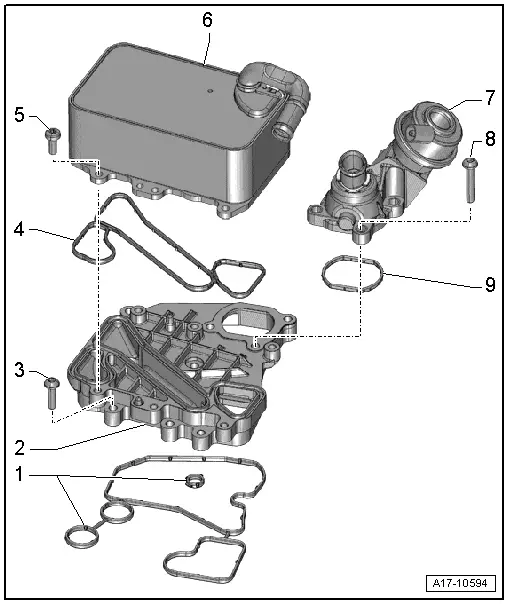

| Engine oil cooler - exploded view |
| Engine oil cooler, coolant shut-off valve |
| 1 - | Gaskets |
| q | For mounting plate |
| 2 - | Mounting plate |
| q | For engine oil cooler |
| 3 - | Bolt |
| q | 9 Nm |
| 4 - | Gasket |
| q | For engine oil cooler |
| q | Renew |
| 5 - | Bolt |
| q | 9 Nm |
| 6 - | Engine oil cooler |
| q | See note → Chapter |
| q | Removing and installing → Chapter |
| 7 - | Coolant shut-off valve |
| q | Removing and installing → Chapter |
| 8 - | Bolt |
| q | Tightening torque → Item |
| 9 - | Gasket |
| q | For shut-off valve |
| q | Renew |

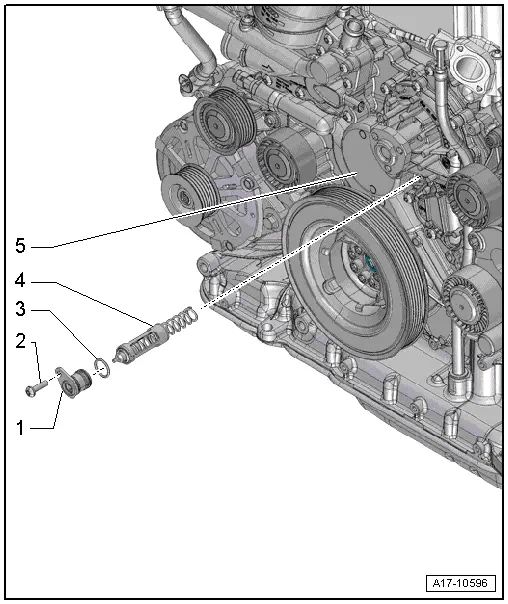

| Temperature regulator for engine oil cooler |
| 1 - | Cover |
| q | For temperature regulator for engine oil cooler |
| q | Removing and installing → Chapter „Removing and installing sealing flange (pulley end)“ |
| 2 - | Bolt |
| q | Renew |
| q | Tightening torque and sequence → Fig. |
| 3 - | O-ring |
| q | Renew |
| 4 - | Temperature regulator for engine oil cooler |
| q | Removing and installing → Chapter |
| 5 - | Sealing flange |
| q | Pulley end |
| q | Removing and installing → Chapter |
