A4 Mk3
Power unit
Direct petrol injection and ignition system (4-cyl. 1.8 ltr. 4-valve turbo with timing chain)
Ignition system, glow plug system
Servicing ignition system
Removing and installing ignition coils with output stages
Removing and installing ignition coils with output stages
Removing and installing ignition coils with output stages
Special tools and workshop equipment required
t

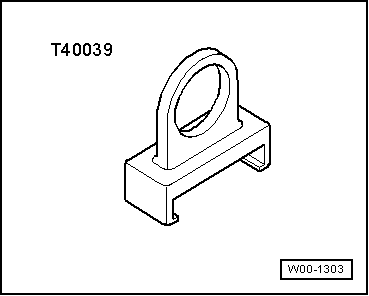

Puller -T40039-
Removing:
–
Remove engine cover.
–
Unscrew two bolts on connector rail.
–

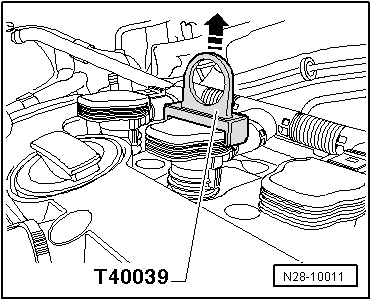

Pull all ignition coils approx. 30 mm out of spark plug holes using puller -T40039-.
–

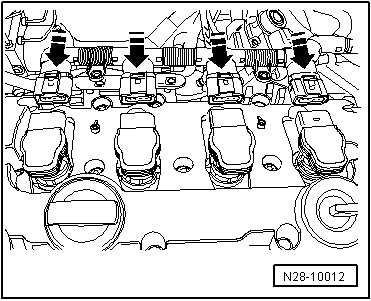

Release connectors and unplug all connectors from the ignition coils at the same time.
Installing
–
Fit all ignition coils loosely into spark plug holes.
–
Align the ignition coils with the connectors and attach all connectors onto ignition coils simultaneously.
–
Press ignition coils onto spark plugs by hand with uniform pressure (do not use any tools).
