Removing and installing ignition coils Special tools and workshop equipment required

t  Puller -T40039-

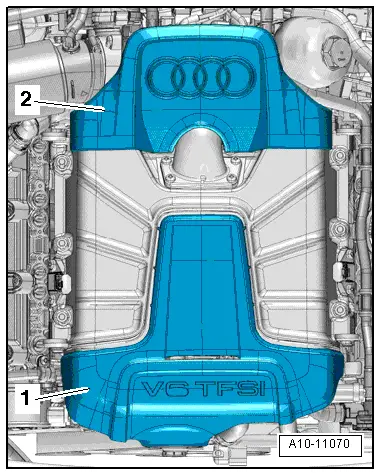

Removing –  Lift off engine cover panels -1- and -2-.

–  Move clear fuel line -4- and line -1- leading to activated charcoal filter on air cleaner housing and air pipe. –  Detach vacuum hose -2- from connection on air hose. –  Remove air pipe. To do so, release hose clip -3- and clamps -arrows-. –  Remove air cleaner housing.

–  Remove bolts -arrows- and unplug electrical connectors at ignition coils. –  Move electrical wiring harness down slightly.   Note Disregard -items 1, 2-.

Cylinder bank 2 (left-side): –  Remove bolt -arrow-. –  Unplug electrical connector for coolant shortage indicator switch -F66- at bottom of expansion tank and move expansion tank to one side with coolant hoses -1- and -2- attached.

–  Remove bolts -arrows- and unplug electrical connectors at ignition coils. –  Move electrical wiring harness down slightly.   Note Disregard -items 1, 2, 3-.

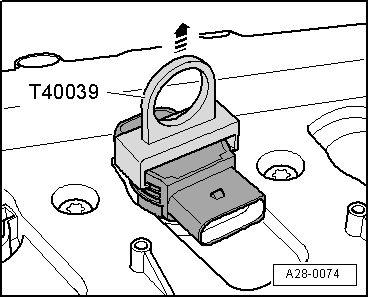

Continuation for both sides: –  Remove ignition coils using puller -T40039-. Installing l  Tightening torques → Chapter and → Chapter Install in reverse order.
