General notes (from week 45/08 onwards) |
The MMI fitted from week 45/08 onwards is an enhanced version of the MMI which has been used up to now. The functions for control unit, mobile phone pre-installation, connection for external audio sources, CD and DVD drives, navigation system (with hard disk) and speech dialogue system are all integrated in the control unit 1 for information electronics -J794- as one unit. |
The radio -R- / CD changer -R41- and the digital sound package control unit -J525- are externally linked to the system via the MOST bus. The basic sound systems are directly activated by the radio -R-. The optional satellite radio -R146- (SDARS) is integrated in the radio -R-. |

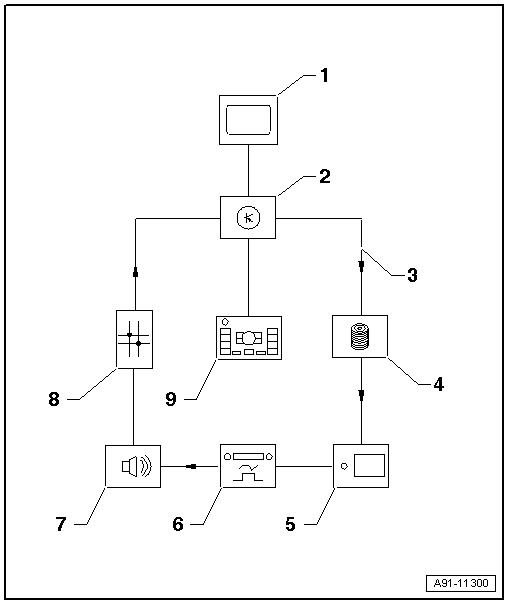

t
| Control unit 1 for information electronics -J794- in dash panel contains CD player / DVD player / navigation system / mobile phone pre-installation / voice control system / SD memory card readers |
t
| Internal hard disk (HD) to store navigation data and MP3 files |
t
| Multimedia system operating unit -E380- in centre console |
t
| Display unit for front information display and operating unit control unit -J685- in dash panel (centre) |
t
| CD changer -R41- / optional connection for external audio sources -R199- (interface) in glove box |
t
| Connection for external audio sources -R199- (AUX IN socket) in centre console storage compartment |
t
| Digital sound package control unit -J525- located in luggage compartment (rear left) |
t
| Sound system: Standard/Bang & Olufsen |
t
| Radio -R- in luggage compartment (rear left) with optional satellite radio -R146- |
t
| Multi-function steering wheel (fitted optionally) |
t
| Bluetooth hands-free system (fitted optionally) |
t
| WLAN (WiFi) - from model year 2013 onwards |
The exchange of data in the MMI systems takes place via the MOST bus. |
The connection to other data bus systems in the vehicle is handled by the data bus diagnostic interface -J533-. |
For more information, refer to → No.286. |

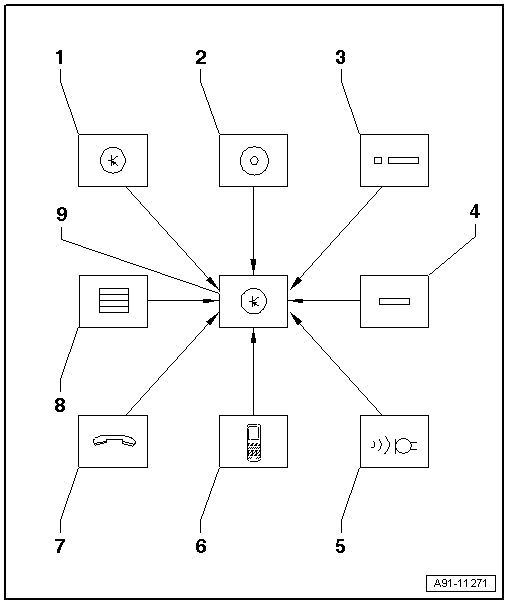

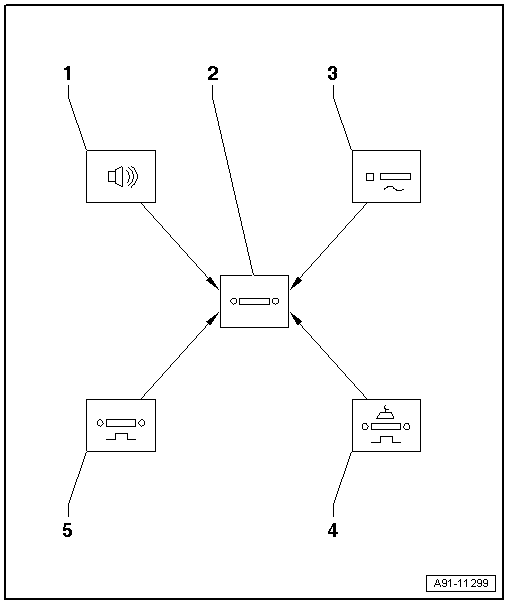

Control unit 1 for information electronics -J794- - layout |
The control unit 1 for information electronics -J794- is a third-generation MMI version. Depending on the equipment version, the control unit 1 for information electronics -J794- contains the following control units known from the second generation: |
|
|
|
