Removing and installing microphone unit in front roof moduleR164
Removing and installing microphone unit in front roof moduleR164
Removing and installing microphone unit in front roof module -R164-
The microphone unit in front roof module -R164- in the front interior light -W1- can only be renewed as a complete unit.
–
Switch off all electrical equipment.
–
Remove ignition key.
Removing
–
Remove front interior light -W1-
→ Electrical system; Rep. gr.96
.
–

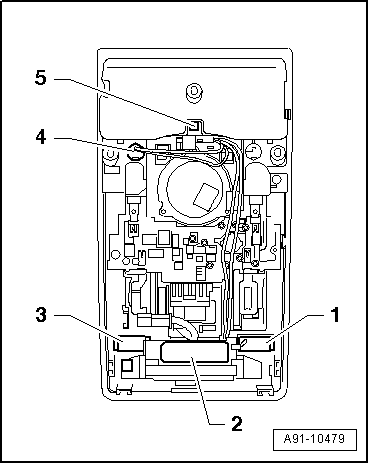

Unclip connector
-5-
from retainer in front interior light -W1- and unplug.
–
Pry the individual microphones
-1-
,
-3-
and
-4-
out of the retainer.
Installing
–
Install in reverse sequence of removal.
Exploded view
→ Chapter
