Removing and installing aerial amplifier for mobile telephoneR86 (Avant)
Removing and installing aerial amplifier for mobile telephone -R86- (Avant)
The aerial amplifier for mobile telephone -R86- is located behind the luggage compartment side trim (right-side).
–  Switch off all electrical equipment.
–  Remove ignition key.
Removing
–  Remove luggage compartment side trim (right-side) → General body repairs, interior; Rep. gr.70.

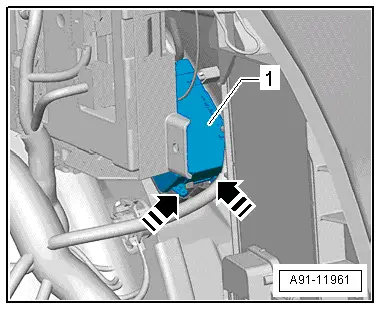

The aerial amplifier for mobile telephone -R86- is clipped into a retainer.
–  Press retaining tabs inwards and remove aerial amplifier for mobile telephone -R86--1-.
–  Release and unplug all connectors at aerial amplifier for mobile telephone -R86--1-.
Installing
–  Install in reverse sequence of removal.
Exploded view → Chapter
  A91-11961
