Removing and installing aerial amplifier for mobile telephoneR86 (saloon)
Removing and installing aerial amplifier for mobile telephoneR86 (saloon)
Removing and installing aerial amplifier for mobile telephone -R86- (saloon)
The aerial amplifier for mobile telephone -R86- is located behind the luggage compartment side trim (right-side).
–
Switch off all electrical equipment.
–
Remove ignition key.
Removing
–
Remove luggage compartment side trim (right-side)
→ General body repairs, interior; Rep. gr.70
.
–

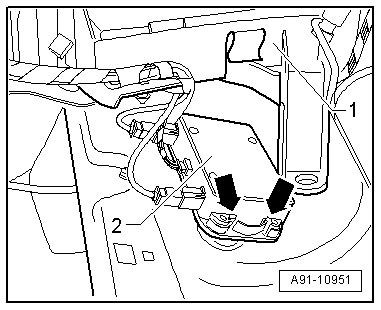

Detach control unit retainer
-1-
.
The aerial amplifier for mobile telephone -R86- is clipped into a retainer.
–
Release and unplug all connectors at aerial amplifier for mobile telephone -R86-
-2-
.
–
Press retaining tabs
-arrows-
towards inside and remove aerial amplifier for mobile telephone -R86-
-2-
.
Installing
–
Install in reverse sequence of removal.
