Removing and installing cigarette lighter -U1- Special tools and workshop equipment required

t  Puller -T40148-

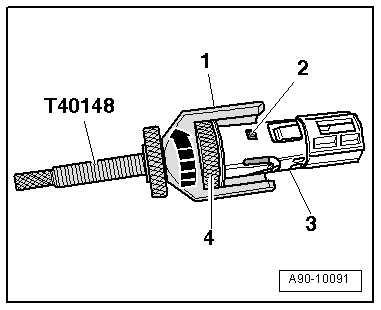

Removing –  Remove cigarette lighter illumination bulb -L28- → Chapter. –  Release tabs -2- on puller -T40148- must engage in recesses in cigarette lighter -U1--item 3--arrow-; for this purpose, push threaded rod -1- downwards as far as stop.

–  Insert puller -T40148- into cigarette lighter -U1--item 1- as far as stop. –  Turn knurled wheel -2- on puller -T40148- clockwise as far as stop.

l  The piston -2- moves upwards and the release tabs -1- on puller -T40148- spread apart -arrows-. –  Use puller -T40148- to pull cigarette lighter out of illuminated ring.

–  Release retaining clips in direction of -arrows-. –  Take cigarette lighter with illuminated ring -1- out of ashtray (front) -2-. Installing Installation is carried out in the reverse order; note the following:   Caution Risk of injury. t  After detaching puller -T40148- check that retaining tabs for lighter are not bent. t  If retaining tabs are bent they must be bent back to prevent lighter from ejecting.

–  Detach support -1- from puller -T40148-. –  Push piston downwards and hold in this position. –  Turn knurled wheel -4- on puller -T40148- anti-clockwise -arrow-; this will open release tabs -2- on cigarette lighter -U1--item 3- and puller -T40148- can be removed. –  Press illuminated ring for cigarette lighter into mounting until retaining clip engages. l  Illuminated ring can only be fitted in one position into mounting.
