A4 Mk3

Removing and installing glove compartment lightW6
Removing and installing glove compartment light -W6-

Removing
–  Turn light switch to position „0“.

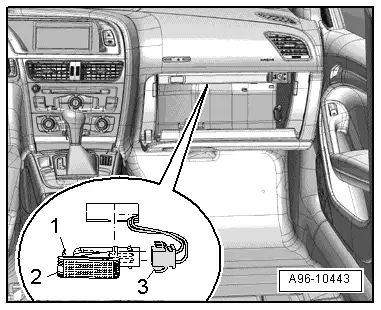

–  Use a flat screwdriver to press in retaining tab -1- and pry out glove compartment light -2-.
–  Unplug electrical connector -3-.
  A96-10443

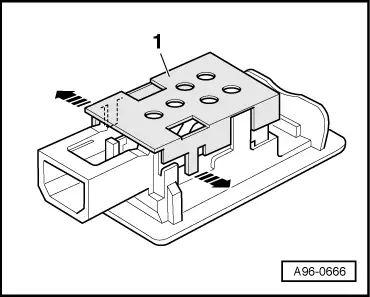

–  To renew bulb, release clips -arrows- and detach cover -1- over bulb.
  A96-0666

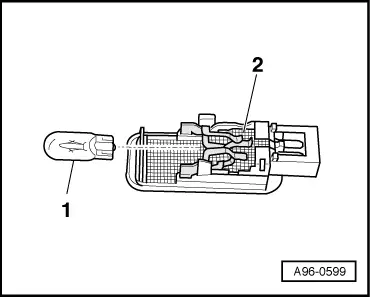

–  Remove bulb -1- from bulb holder -2- on reverse side of glove compartment light.
Installing
Installation is carried out in the reverse order; note the following:
–  Plug in electrical connector.
–  Insert glove compartment light in opening and engage on opposite side.
  A96-0599
