Removing and installing fuse carrier in engine compartment electronics box
Removing and installing fuse carrier in engine compartment electronics box
Removing and installing fuse carrier in engine compartment electronics box
Removing
–
Remove fuse holder B
→ Chapter
.
–
Release retaining clip
-arrow-
, press out fuse carrier
-2-
towards rear and disengage.
Note
Disregard other
-items-
.
–
If fitted, release captive fastener and pull it off fuse carrier.
–
Remove fuses from fuse carrier.
–
Release retaining clips
-arrows-
and remove cover from fuse carrier.
–

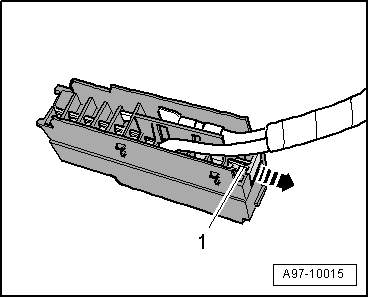

Detach retaining strip
-1-
for connectors
-arrow-
and take connectors out of socket.
Note
Exact assignment of contacts in fuse carrier in engine compartment electronics box can be found in applicable current flow diagram
→ Current flow diagrams, Electrical fault finding and Fitting locations
.
Installing
Installation is carried out in the reverse order; note the following:
–
Install fuse holder B
→ Chapter
.
–
Connect battery. Steps required
