Removing and installing CAN isolating connector (interior)T46i
Removing and installing CAN isolating connector (interior) -T46i-

Removing
–  Switch off ignition and take out ignition key.
–  Remove A-pillar trim (bottom left) → Rep. gr.70.
–  Press in retaining tabs -1- and release retaining clip -arrow-.
–  Remove CAN isolating connector (interior) -T46i--item 2-.
  Note
Exact contact assignment of CAN isolating connector (interior) can be found in appropriate current flow diagram → Current flow diagrams, Electrical fault finding and Fitting locations.
Installing
Installation is carried out in the reverse order; note the following:
–  Install A-pillar trim (bottom left) → Rep. gr.70.

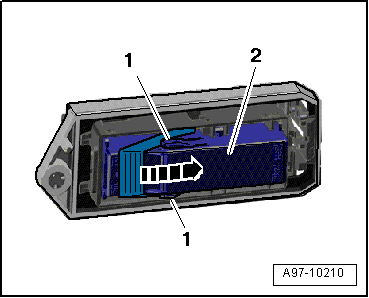

  A97-10210
