Removing and installing mounting for CAN isolating connector (interior)T46i
Removing and installing mounting for CAN isolating connector (interior) -T46i-

Removing
–  Disengage A-pillar connector point (left-side) → Chapter.
–  Remove CAN isolating connector (interior) -T46i- → Chapter.

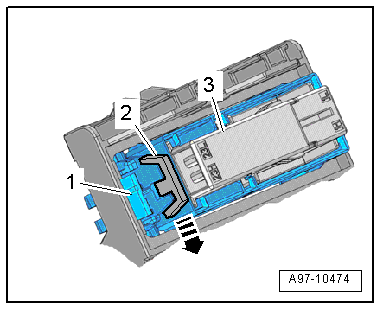

–  Move locking lever -2- to „open“ position -arrow-.
–  Press release tab -1- and press out mounting -3- for CAN isolating connector (interior) -T46i- towards rear.
  A97-10474
Installing
Installation is carried out in the reverse order; note the following:
–  Move locking lever -1- on mounting to „closed“ position.
l  The two markings -arrows- must face each other.
–  Install CAN isolating connector (interior) -T46i- → Chapter.
–  Install A-pillar connector point (left-side) → Chapter.
  A97-10475
