Removing and installing fuse holder DSD with fuse carrier in dash panel (right-side)

Removing and installing fuse holder D -SD- with fuse carrier in dash panel (right-side)

Removing

–	Switch off ignition and take out ignition key.

–	Remove glove box → Rep. gr.68.

–	Remove mounting for CAN isolating connector (interior) -T46i--item 4- → Chapter.

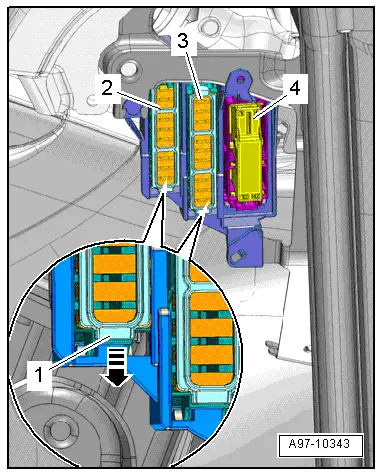

–	Release retaining clips -1- in direction of -arrow- and press fuse carriers -2- and -3- out of fuse holder D towards rear.

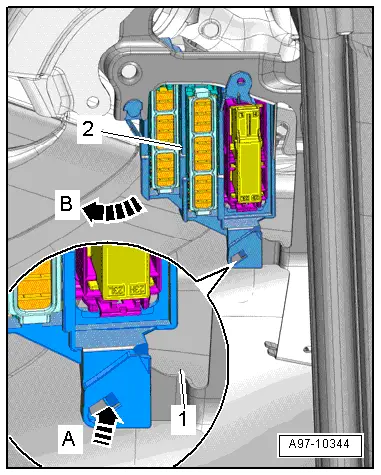

–	Release retaining clip -arrow A- and swivel out fuse holder D -item 2- in direction of -arrow B- on central tube -1- for dash panel.

Installing

Installation is carried out in the reverse order; note the following:

–	Install mounting for CAN isolating connector (interior) -T46i- → Chapter.

–	Install glove box → Rep. gr.68.
