Removing and installing oil pressure switch -F1-/oil pressure switch for reduced oil pressure -F378- - engine codes CAMA, CAMB, CCLA, CCWA, CCWB, CGKA, CGKB
Special tools and workshop equipment required
t
Assembly tool -T10118-
t

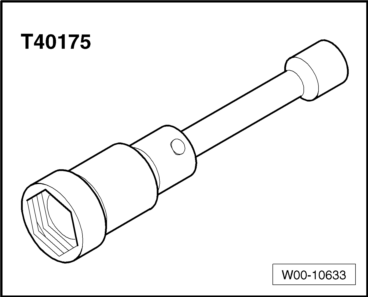

Articulated wrench, 24 mm -T40175-
Removing
–
Remove pump for exhaust gas recirculation cooler -V400-
→ Chapter
.
–
Use assembly tool -T10118- to unplug electrical connector
-arrow-
.
–
Use articulated wrench, 24 mm -T40175- to remove oil pressure switch for reduced oil pressure -F378-.
Installing
Installation is carried out in the reverse order; note the following:
l
Tightening torque
→ Chapter „Engine oil cooler, pressure control valve, oil filter housing and oil pressure switch - exploded view“
Note
Renew seal.
–
Install pump for exhaust gas recirculation cooler -V400-
→ Chapter
.
