A6 Quattro Sedan V8-4.2L (BVJ) (2007)
Cellular Phone Microphone: Service and Repair

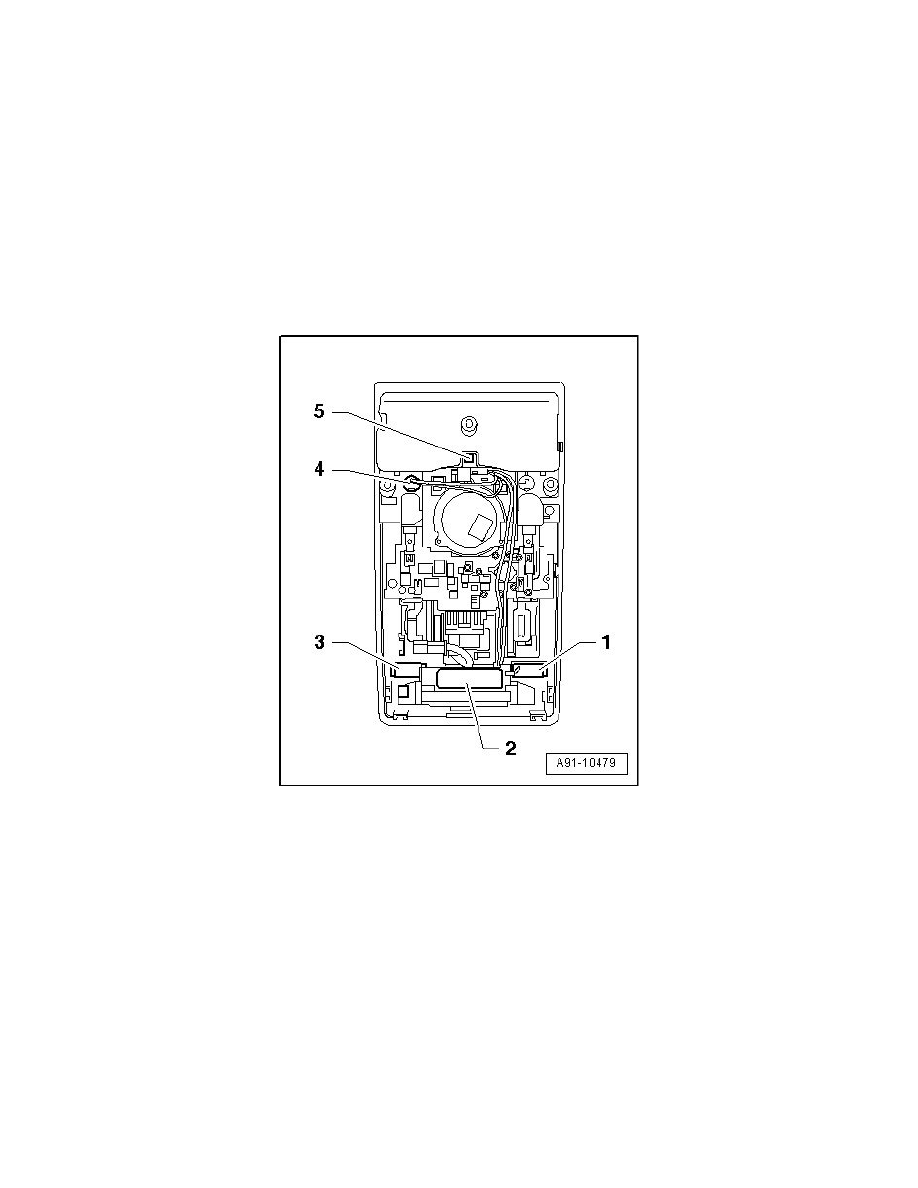

Microphone Unit in Front Roof Module, From MY 07
Microphone Unit in Front Roof Module, from MY 07
Microphone Unit (in front roof module) (R164) can only be replaced as a complete unit.
-
Turn off all electrical consumers.
-
Remove ignition key.
Removing
-
Remove Front Interior Light (W1).
-
Unclip harness connector - 5 - from retainer in Front Interior Light (W1) and disconnect harness connector.
-
Pry the individual microphones - 1 -, - 3 - and - 4 - out of retainer.
Installing
-
Install in reverse order.
