A6 Quattro Sedan V8-4.2L (BVJ) (2007)
-

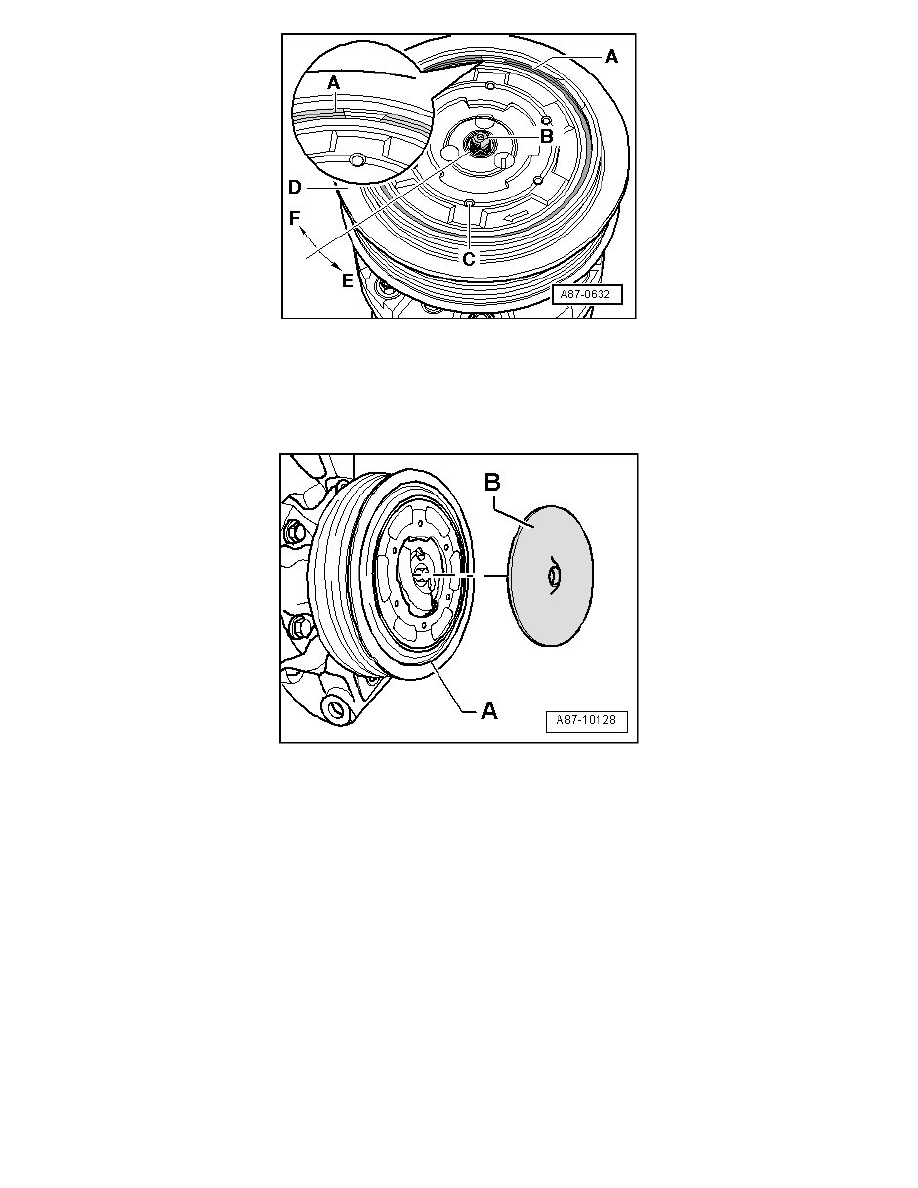

Tighten drive plate - C - (via belt pulley - D -) to 35 Nm by rotating in direction of arrow - F - using a standard band wrench (with webbing), hold
compressor shaft - B - firmly in place using a standard Allen wrench or a socket wrench from shock absorber set (T10001).
-
Install circlip - A -.
-
Clean drive plate of belt pulley - A - and glue plastic disc - B - centered onto drive plate (only on compressors without rubber ring on circlip).
