A6 Quattro Wagon V6-3.2L (BKH) (2006)
-

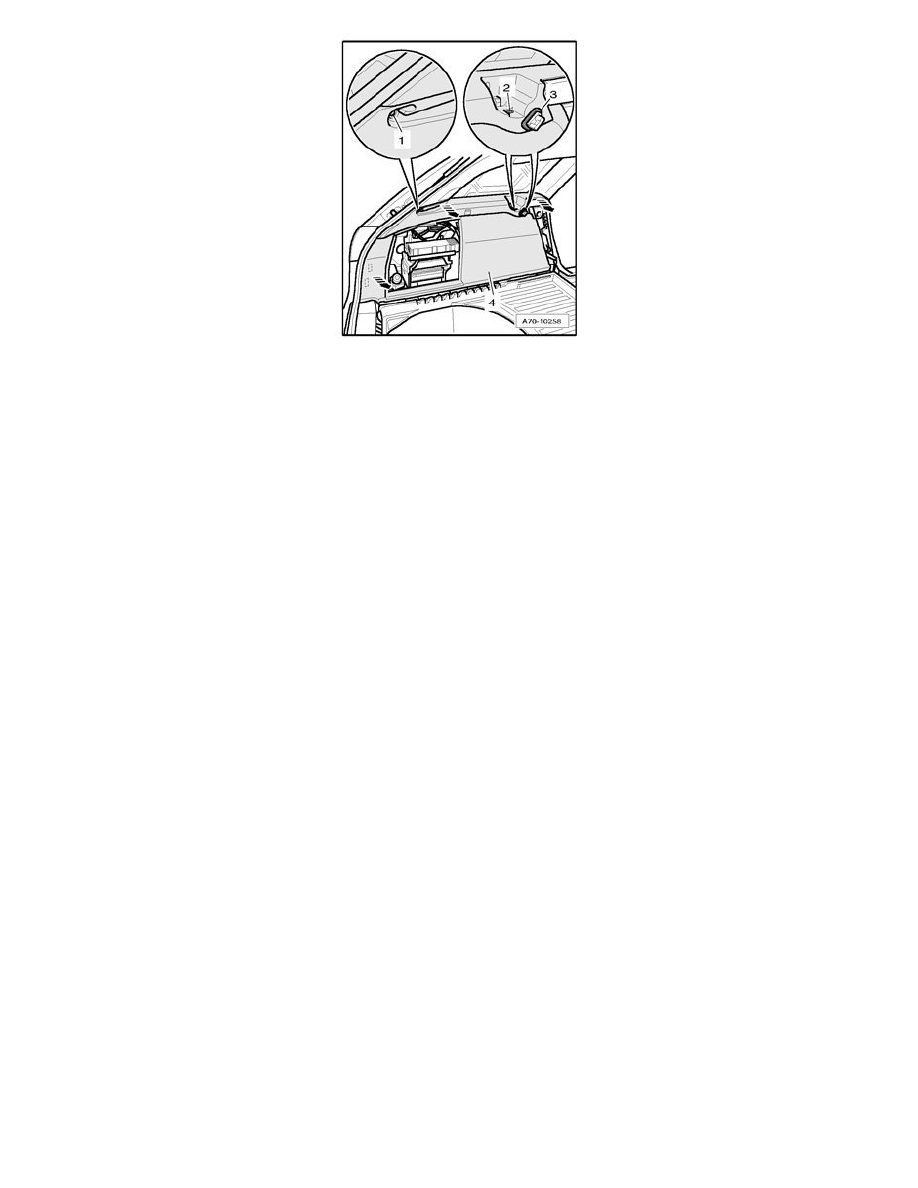

Remove bolts - 1 - and - 2 -.
-
If equipped, remove rubber grommet - 3 - on partition grille mount.
-
Remove spring clamps from body - arrow -.
-
Remove side luggage compartment trim - 4 - from luggage compartment.
Installing
Installation is reverse of removal, but note the following:
-
Install rear cross panel trim.
-
Install tie-down retaining tracks.
-
Install rear side airbag.
-
Install rubber seal lip over leading edge on luggage compartment side trim.
Tightening torque
Component
Nm
Side luggage compartment trim on body
3.5
