A6 Quattro Wagon V6-3.2L (BKH) (2006)
Specified value: Battery voltage
If the specification is not obtained:
-
Check the wiring for a short circuit to Battery positive (+) or an open circuit.
-
If necessary, repair the wiring connection.
If no malfunctions are found in the wiring:
-

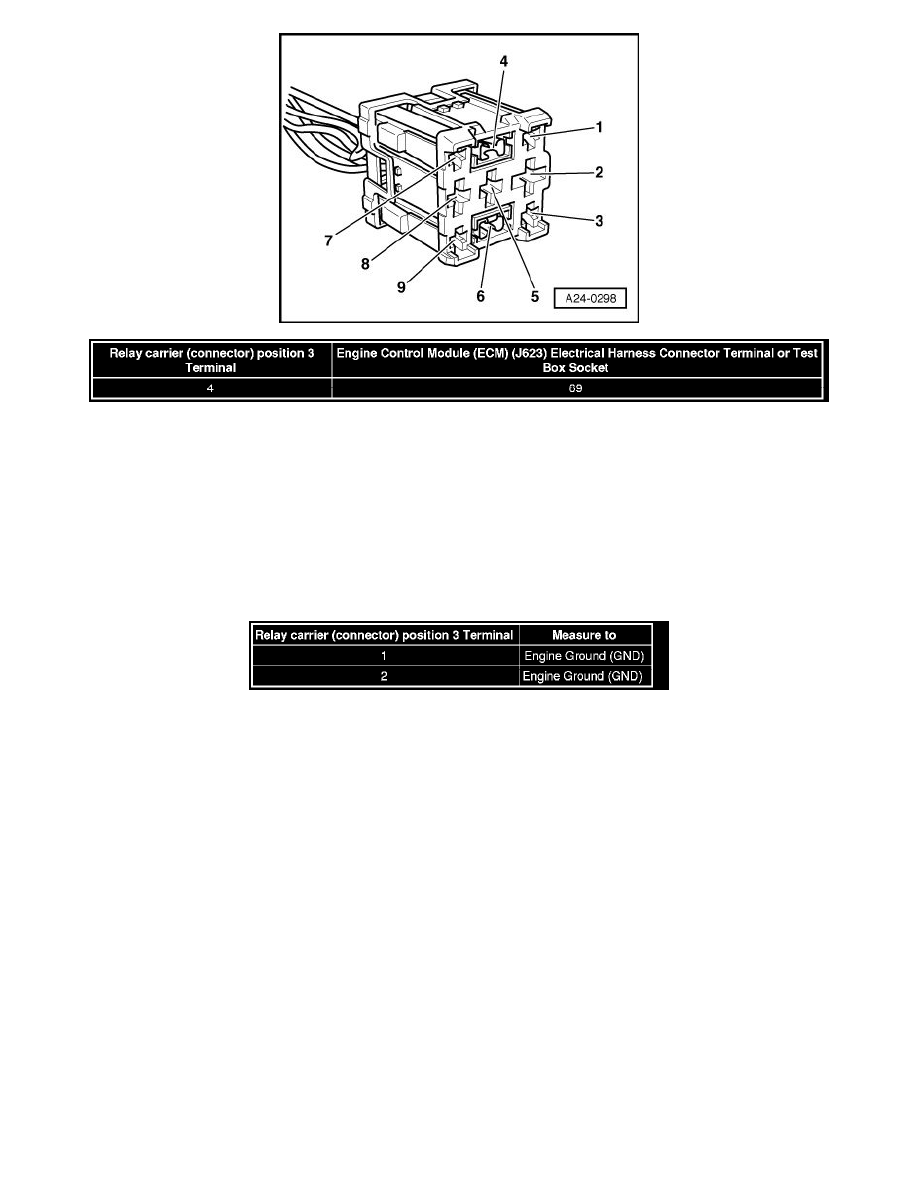

Using a Multimeter or equivalent, check the following wiring connections for voltage according to wiring diagram:
Switch the ignition off.
Specified value: Battery voltage.
If the specified value is not obtained:
-
Check the wiring connections for an open circuit according to the wiring diagram.
Specified value: Wire resistance max 1.5 ohms.
If no malfunctions are found in the wiring:
Checking wire connection
