A6 Quattro Wagon V6-3.2L (BKH) (2006)
Transmission Cooler: Removal and Replacement
ATF lines and ATF Cooler, Assembly Overview
ATF lines and ATF cooler, assembly overview 09L, 6 Speed AWD A/T
Note:
^
Read the rules when working on the automatic transmission.
^
Thoroughly clean all joints and surrounding areas before disassembling.
^
Check ATF level after replacing ATF lines/hoses or ATF cooler.
CAUTION!
^
Drain cooling system completely before removing and installing ATF cooler.
^
Always use cooling system charge unit VAS6096 when refilling cooling system. Otherwise there is a danger of malfunction.

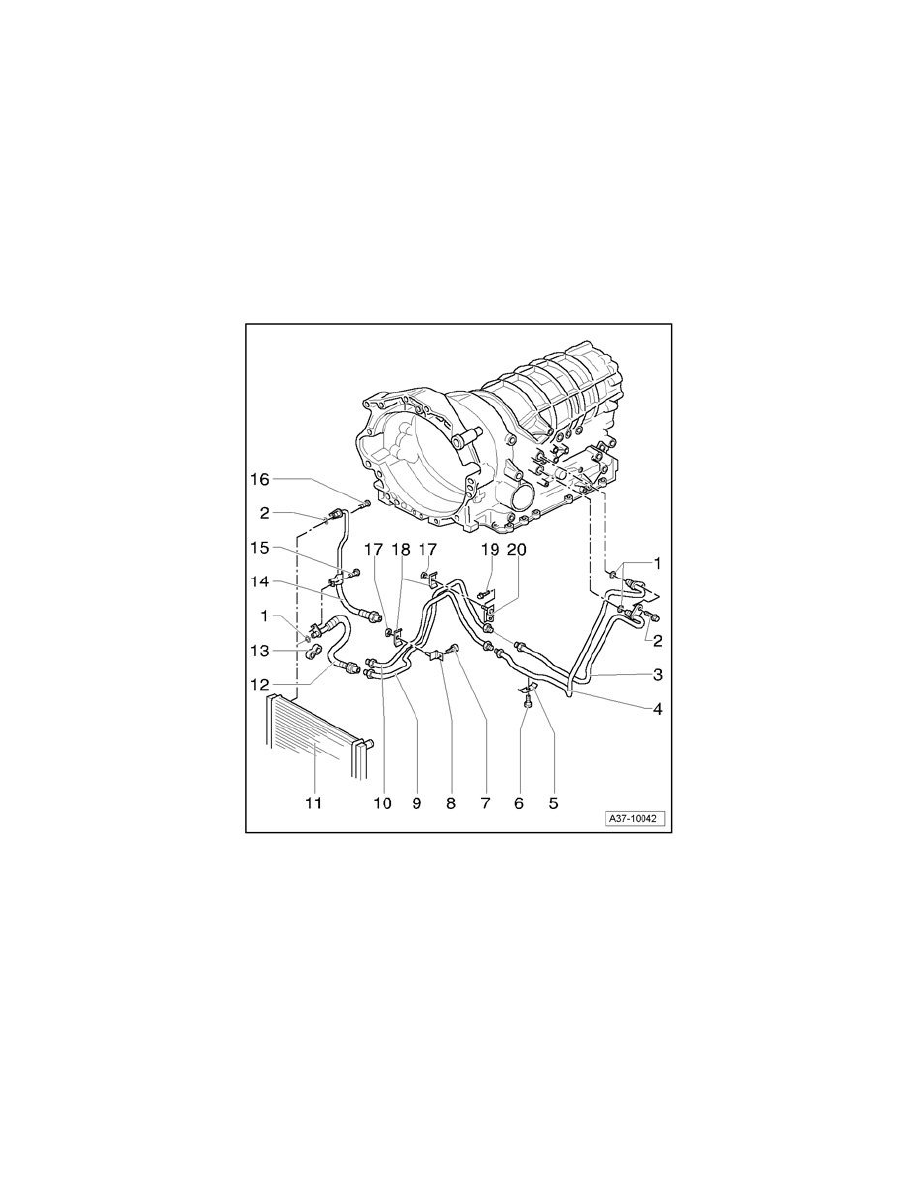

ATF lines and ATF cooler for vehicles with 6-cyl. GDl engine, assembly overview
1 - O-rings
^
Always replace
^
Lubricate with ATF when installing
2 - Bolt, 21 Nm
^
Do not tighten until lines have been fully inserted
3 - ATF line
^
Note correct location
4 - ATF line
^
Note correct location
5 - Bracket for ATF line
6 - Bolt, 5 Nm
