A6 Quattro Wagon V6-3.2L (BKH) (2006)
/Page-3765001.png)
Valve Body: Removal and Replacement
Mechatronics Unit, Removing and Installing
Mechatronics unit, removing and installing 09L, 6 Speed AWD A/T
Note:
^
Always replace mechatronics unit if it is contaminated or faulty.
^
Read the rules when working on the automatic transmission.
Removing
-
Activate jacking mode.
CAUTION!
Follow steps required when disconnecting battery.
-
Switch off ignition.
-
Remove luggage compartment floor covering.
-

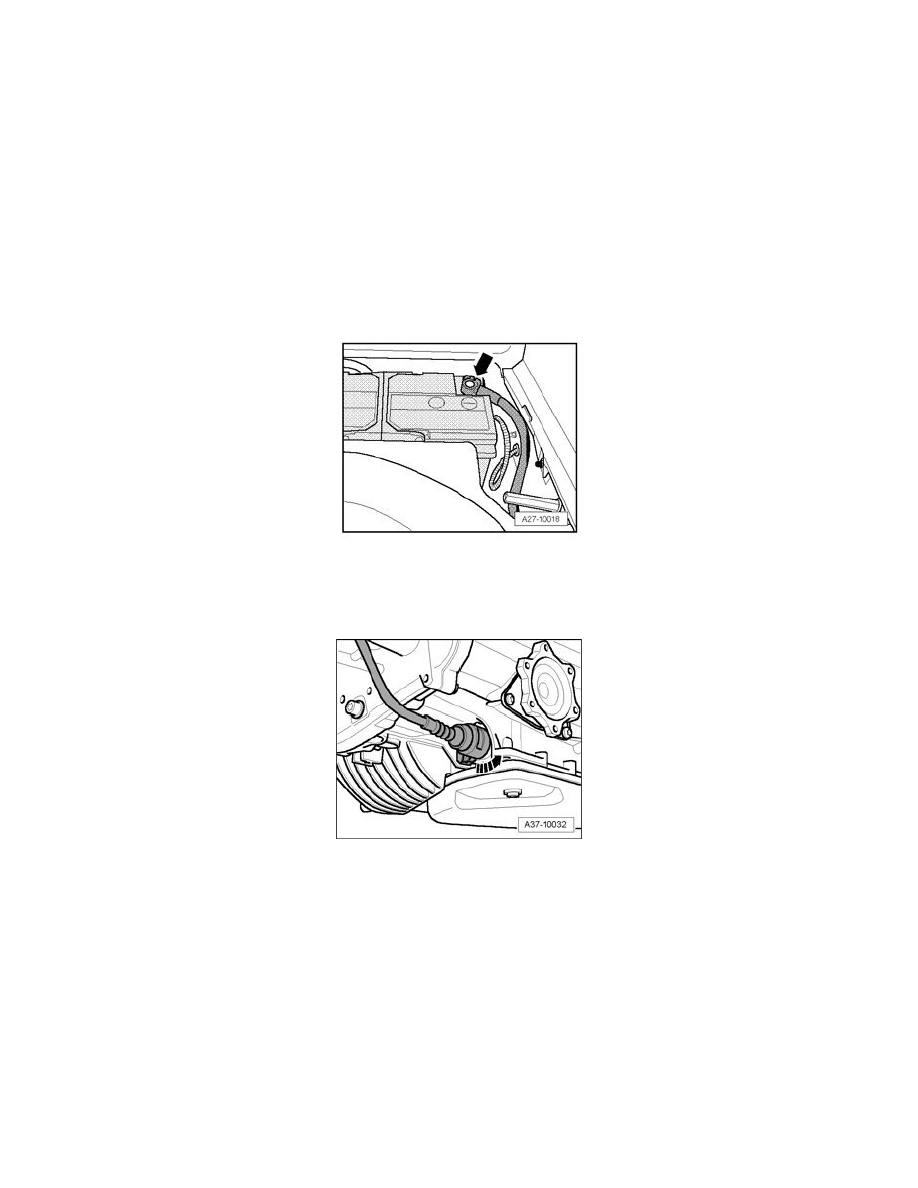

Disconnect Ground (GND) wire - arrow - at battery.
-
Remove oil pan.
-
Remove ATF strainer.
-
Disconnect electrical connector at transmission by turning fastener cap counterclockwise - arrow -.
-
Touch vehicle ground with your hand (without gloves) to discharge any static electricity.
CAUTION!
^
Before touching or removing the mechatronics unit, always discharge any static electricity by touching vehicle ground or other grounded
object with your hand.
^
Never touch contacts in 16-pin connector with your hands, as static discharge would damage the control module and mechatronics unit.
