A6 Quattro Wagon V6-3.2L (BKH) (2006)
Back Window Glass: Service and Repair
Undamaged Rear Window, Removing
Undamaged Rear Window, Removing
CAUTION: When removing a window, always wear protective eyewear and leather gloves.
-
Remove tailgate trim.
-
Remove rear window wiper motor.
-
Disconnect heated rear window electrical connections.
-
Open tailgate.
-

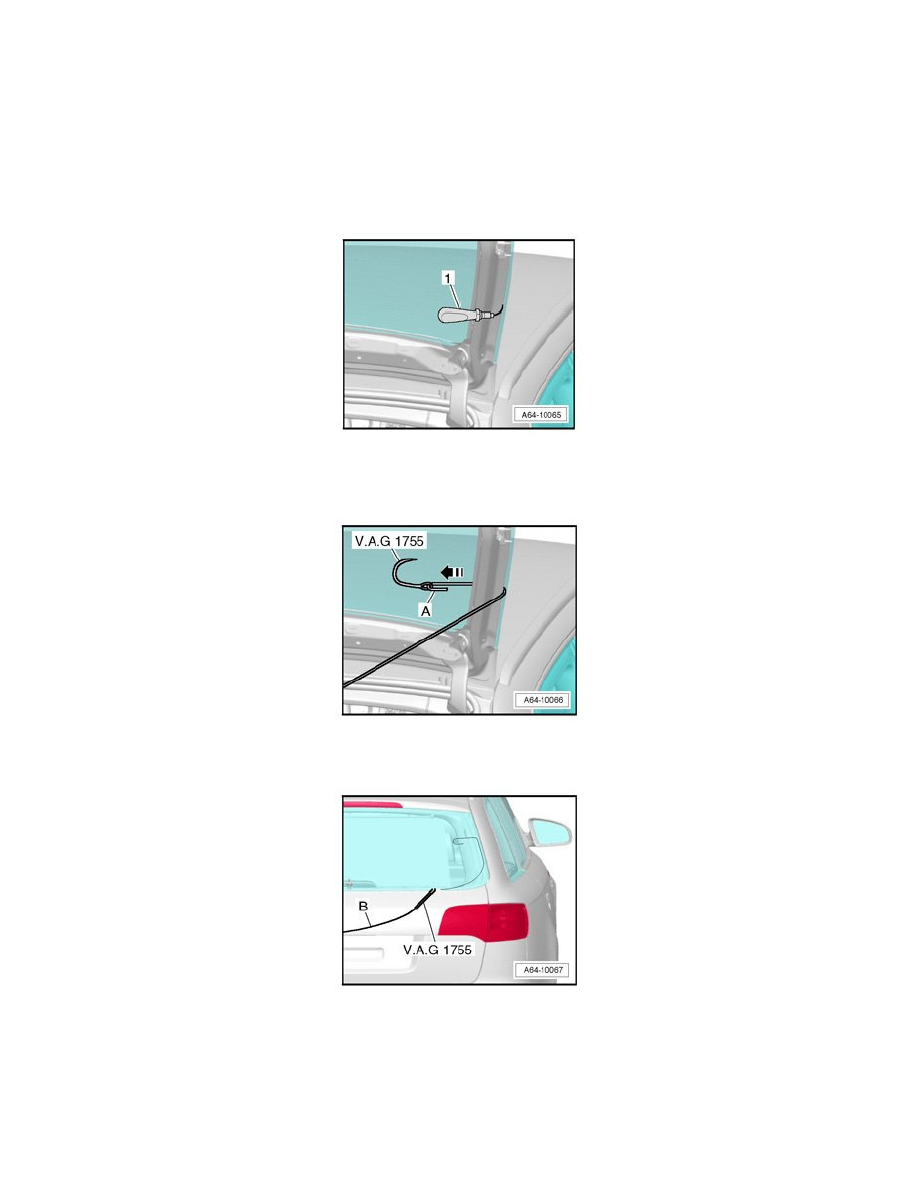

Pierce through adhesive sealing material using a guide needle with handle - 1 - from V.A.G 1755 window removing kit.
-
Remove handle and thread end of cutting cord through eye of the guide needle.
-
Pull cutting cord end - A - inward (use pliers and protective gloves) to opposite window side with guide needle from V.A.G 1755 window
removing kit.
-
Using plastic wedge, loose sealing lip from glass flange and spray with D009 401 04 cleaning solution (lubricant replacement).
-
Insert cutting cord end - B - around rear window using small tube from V.A.G 1755 window removing kit.
