1 Series E81 130i (N52K) 3-door
52 16 055
Replacing an air cushion for left or right
backrest width adjustment
Necessary preliminary tasks:
•
Remove rear panel on front seat

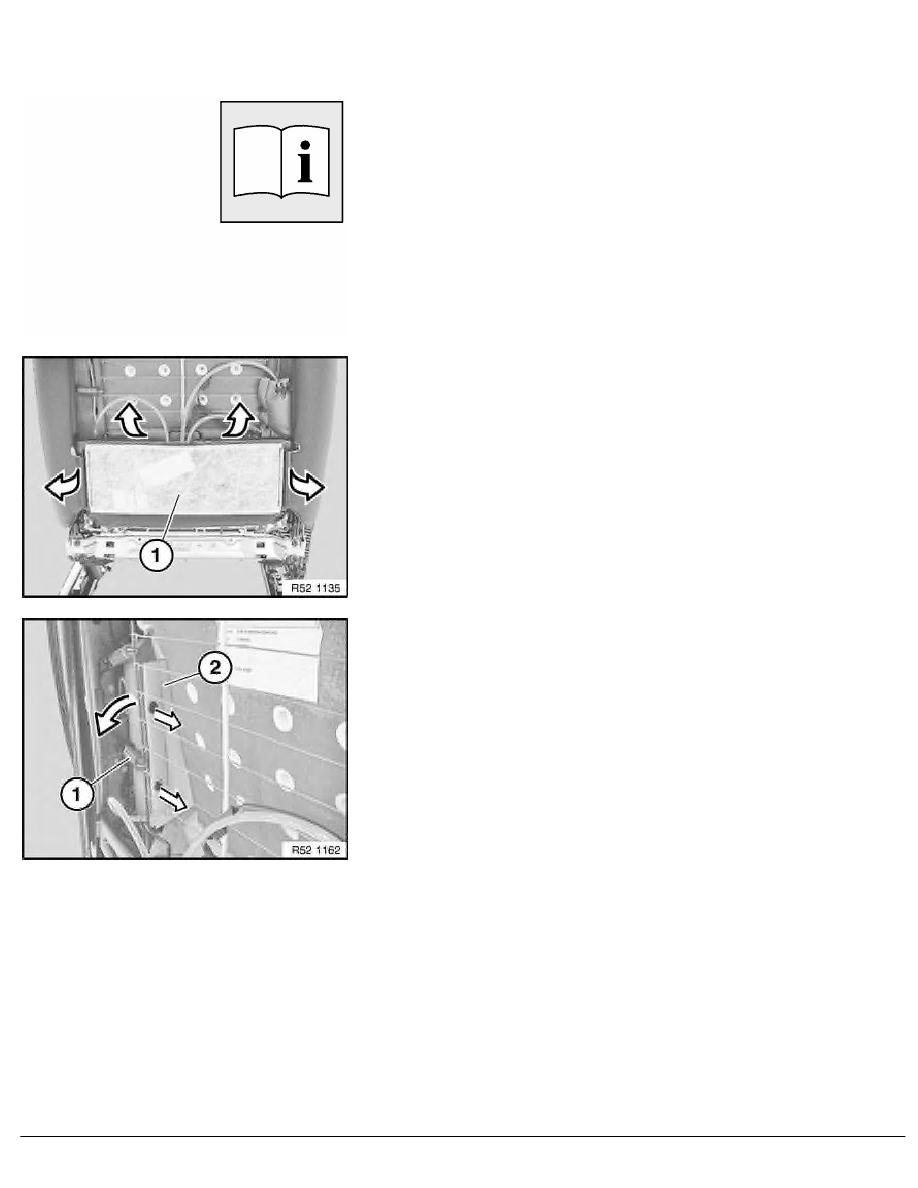

Detach backrest cover (1) from backrest frame.
Note:
Removal of the cushion on the left side is depicted; proceed in the
same way for the right side.
Air cushion must be completely drained.
Disconnect spring (1).
Lever out clips with plastic wedge.
Feed out air cushion (2) between spring wire and backrest frame.
Installation:
Insert air cushion without kinks.
Check air cushion for damage.
RA Replacing an air cushion for left or right backrest width adjustment
BMW AG - TIS
22.01.2013 08:20
Issue status (12/2007) Valid only until next DVD is issued
