3 Series E36 316i (M43) TOUR

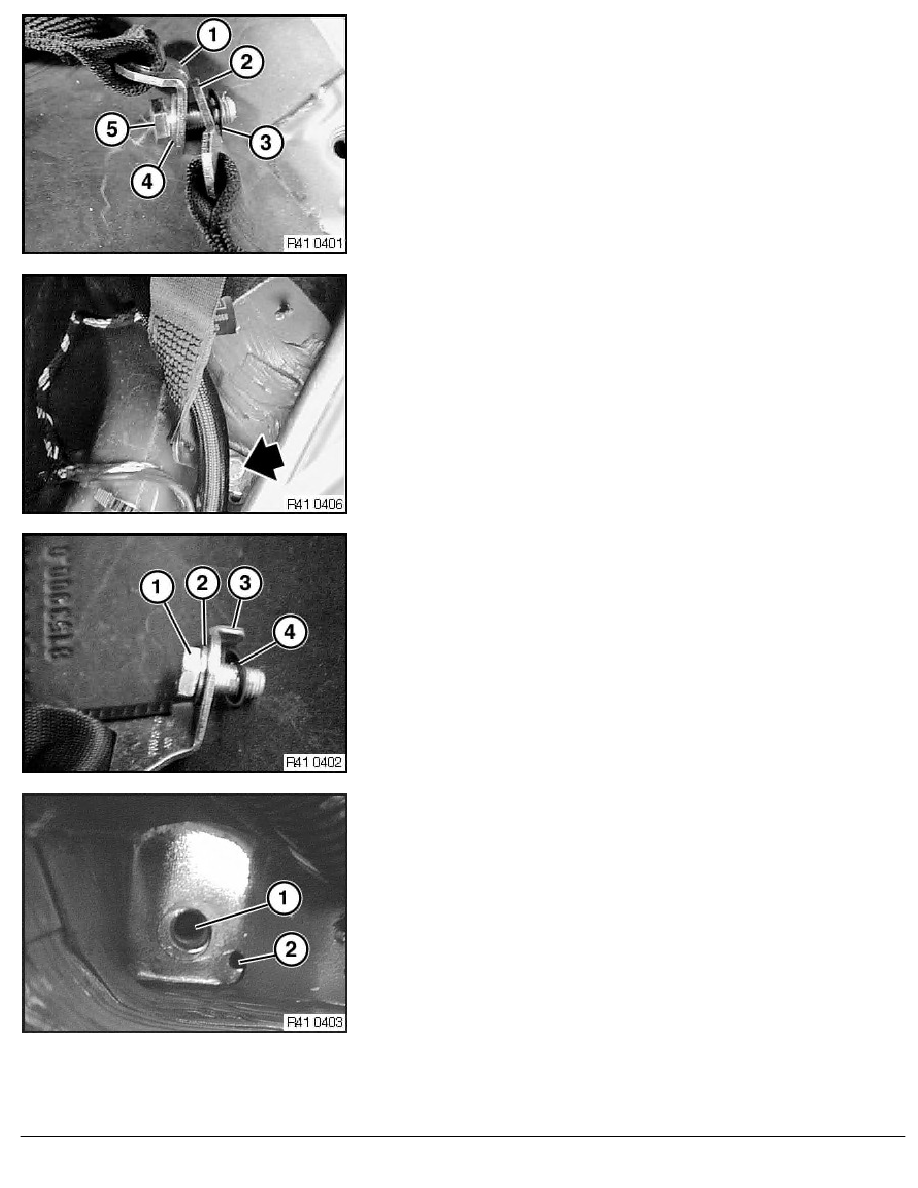

Installation summary of right retaining screw:
1
Safety belt lock on right safety belt
2
Lap belt
3
Lock washer
4
Washer
5
Bolt
Tightening torque,
refer to Technical Data 72 11 1AZ
Unfasten screw on left safety belt (top belt).
Installation summary for retaining screw on left safety belt (top
belt):
1
Bolt
2
Washer
3
Locking device journal
4
Retaining washer
Installation:
Bore (1) - thread for retaining screw on left safety belt (top
belt).
Bore (2) - mounting for locking device journal
RA Removing and installing or replacing all rear seat safety belts (compl.) (tourin
