3 Series E36 316i (M43) TOUR
Installation:

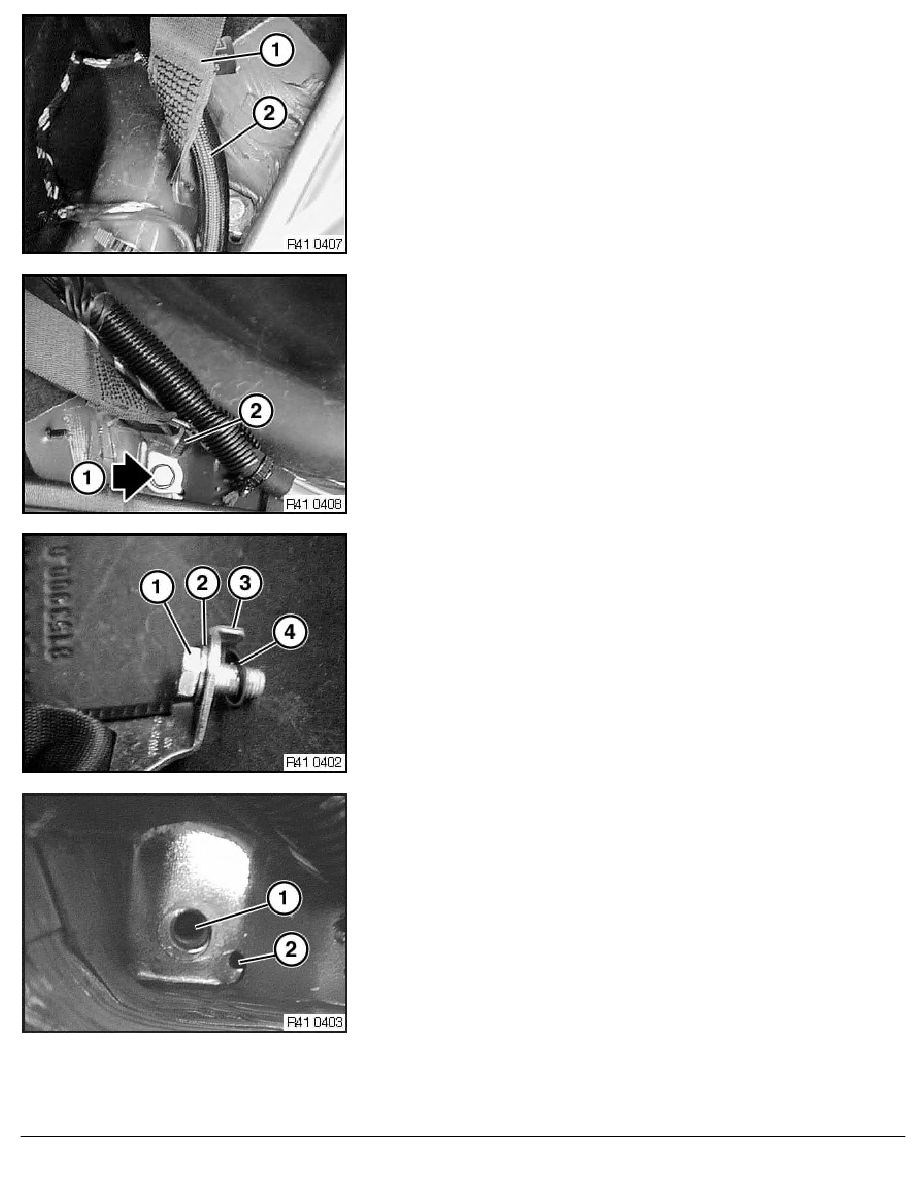

Left safety belt (top belt) (1) must run under wiring harness
(2).
Tightening torque,
refer to Technical Data 72 11 1AZ
Unfasten screw (1) in right safety belt (top belt).
Do not lose edge trim (2) during removal operation.
Installation summary for retaining screw on left safety belt (top
belt):
1
Bolt
2
Washer
3
Locking device journal
4
Retaining washer
Installation:
Bore (1) - thread for retaining screw in right safety belt (top
belt).
Bore (2) - mounting for locking device journal
RA Removing and installing or replacing all rear seat safety belts (compl.) (tourin
