3 Series E36 320i (M50) COUPE
Rotate engine from the 30
°
before TDC position engine-wise up to
TDC position.

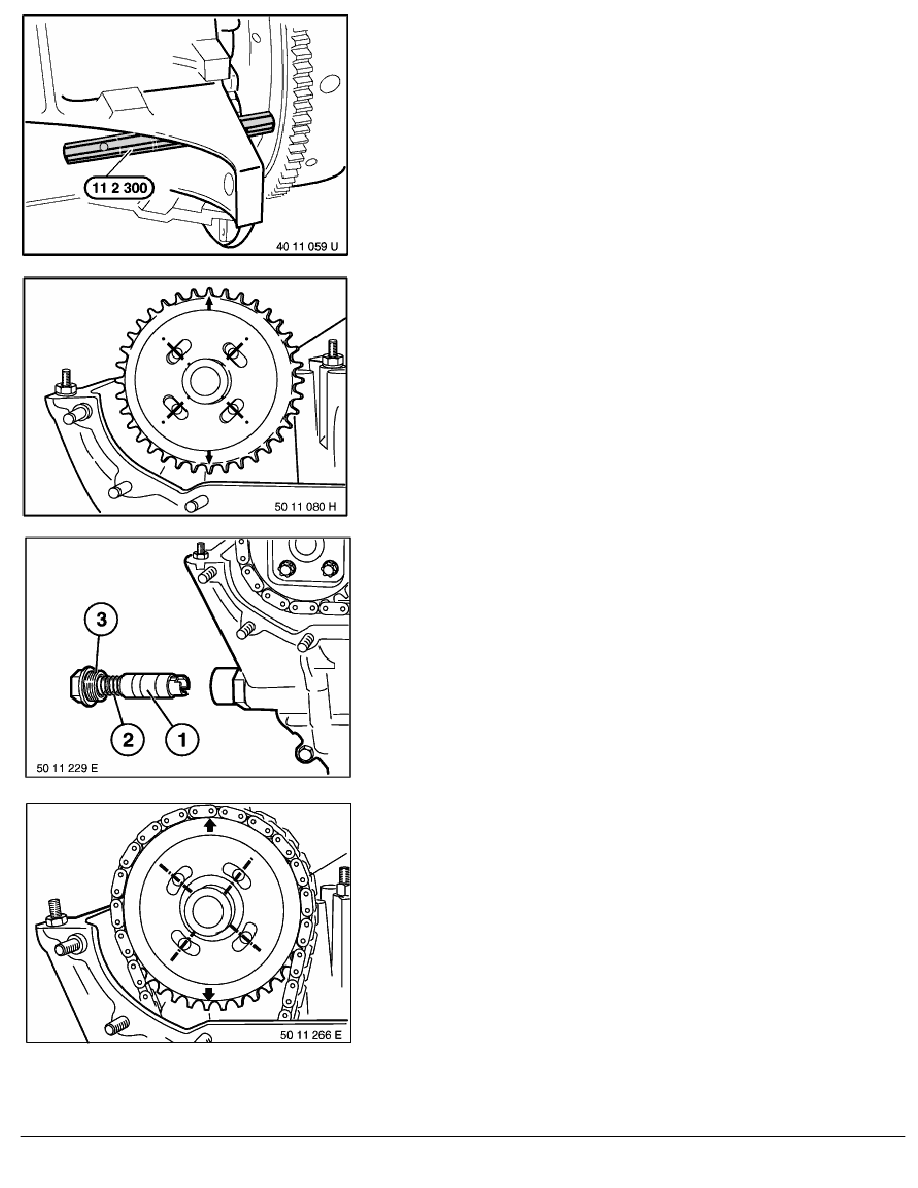

Secure crankshaft in TDC position with special tool 11 2 300.
Caution!
Remove special tool 11 2 300 before switching on the
engine.
Lay timing chain on sprocket. Arrow on sprocket faces up.
Fit sprocket to exhaust camshaft with threaded bores on left side
aligned down the deep bores.
Align groove on chain tensioning piston vertical to clamping rail.
Replace sealing ring of sealing plug (3).
Install piston (1), spring (2) and sealing plug (3).
Tightening Torque of sealing plug (3),
refer to Technical Data 11 31 8AZ
Note:
The longitudinal sprocket holes are now centered to the
threaded bores.
RA Replacing camshaft (M50) (intake or exhaust side as applicable)
