3 Series E36 M roadst (S50) ROADST

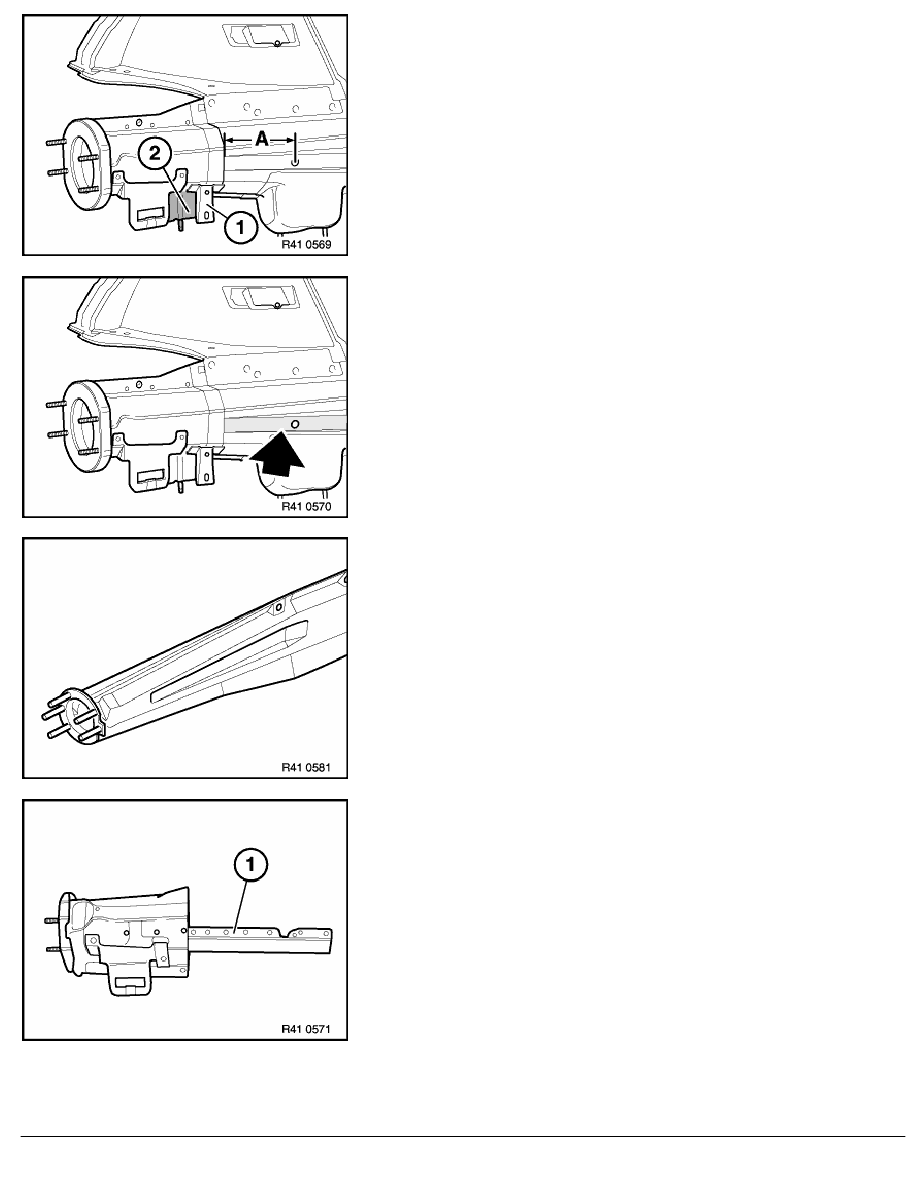

Remove brackets (1) and (2).
Define and mark out distance from center of 10 mm bore via
bracket stabilizer and up to connection point.
Distance (A) = 130 mm.
Clean connection point.
Caution!
Do not cut through both sides of impact absorber support.
Cut through engine support.
Expose and open up welding points on both sides of
reinforcement/impact absorber support.
Remove front section of engine support.
Re-align and grind down connection point.
Cut spare part to size.
Define and mark out distance from center of 10 mm bore via
bracket stabilizer and up to connection point.
Distance (A) = 130 mm.
View: Spare part with reinforcement cut to size
Caution!
Do not cut reinforcement/impact absorber support (1).
Separate the replacement part.
Open up welding points on reinforcement/impact absorber
support and remove front section of engine support with
reinforcement/impact absorber support.
RA Replacing right engine support (partial replacement ahead of front axle) (Z3)
