3 Series E46 318ti (N42) COMP
51 13 282
Replacing trim molding on roof frame on left
or right (compact)
Remove trim molding on roof frame on left or right.

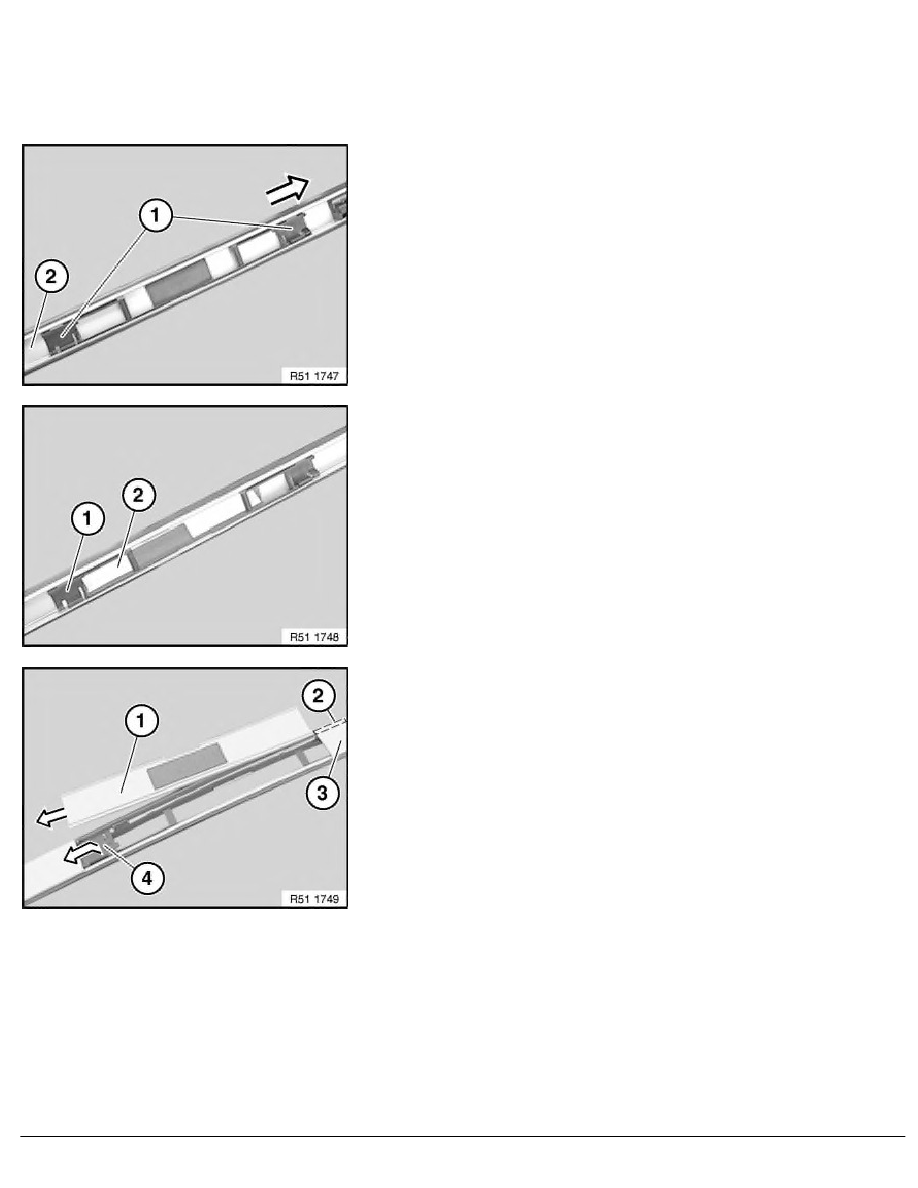

Push plastic unit (1) in trim molding (2) approx. 20 mm to one
side. This displaces the steel pin.
Cover (2) folds open when plastic unit (1) is at aperture.
Remove cover (1) with steel pin (2) from trim molding (3).
After removing cover (1), remove plastic unit (4) upwards to
aperture.
