3 Series E46 M3 CSL (S54) COUPE
11 12 729
Checking cylinder head for leaks - cylinder
head removed (S54)
Special tools required:
•
11 1 402
•
11 1 404
•
11 1 431
•
11 1 433

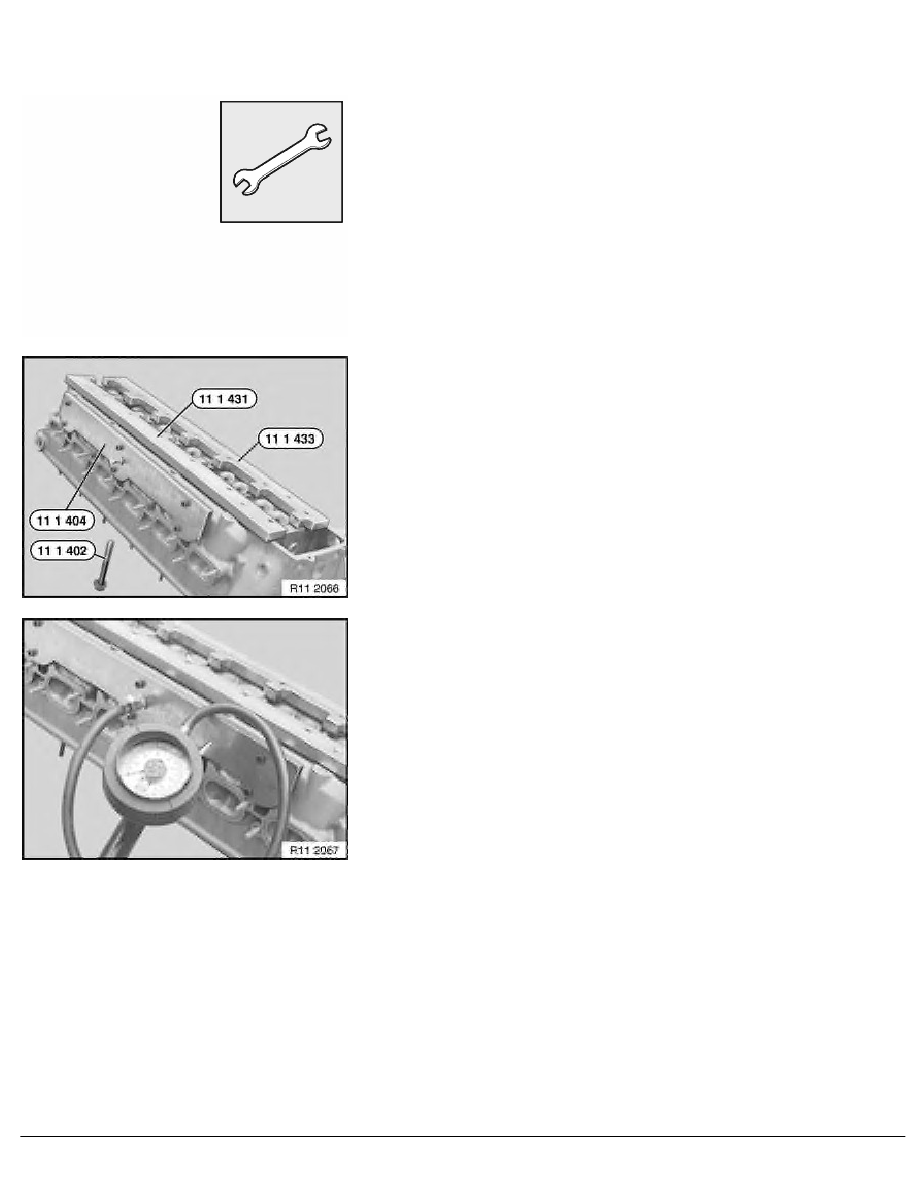

Seal off coolant openings with following special tools.
•
Special tool 11 1 431
•
Special tool 11 1 433
•
Special tool 11 1 402
•
Special tool 11 1 404
Connect compressed air supply to special tool 11 1 404 .
Immerse cylinder head in a water bath.
Test pressure: 4.5 bar.
Check cylinder head for escaping air (cracks).
Note:
If necessary, soften the bath water with a cleaning agent.
RA Checking cylinder head for leaks - cylinder head removed (S54)
