3 Series E46 M3 CSL (S54) COUPE

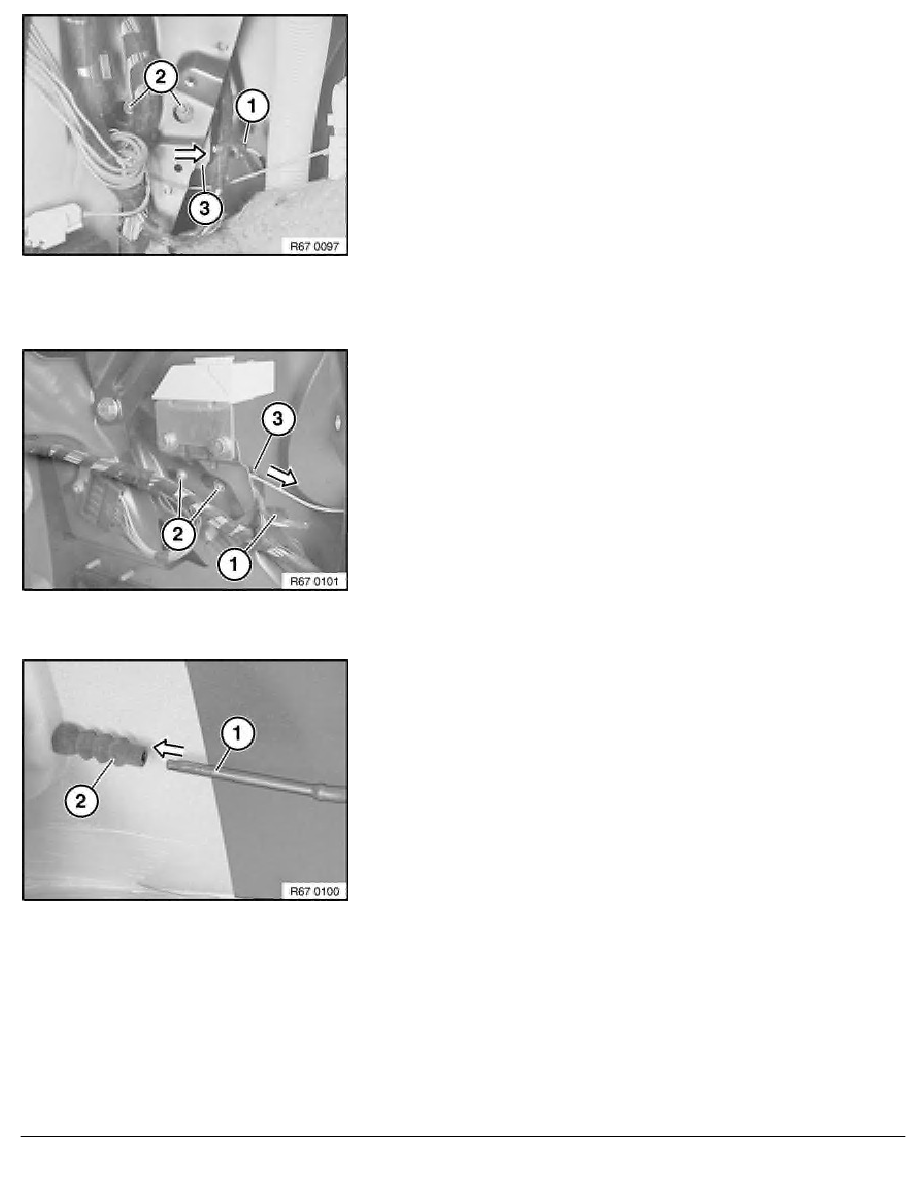

Unlock plug connection (1) and disconnect.
Slacken screws (2).
Feed out servodrive for tank filler flap (3) towards rear and pull
out in direction of arrow.
Convertible:
Removing right luggage compartment wheel arch trim.
Unlock plug connection (1) and disconnect.
Slacken screws (2).
Feed out servodrive for tank filler flap (3) towards rear and pull
out in direction of arrow.
All:
Installation:
Insert servodrive for tank filler flap (1) in direction of arrow into
gaiter (2).
RA Removing and installing/replacing servodrive for tank filler flap
