3 Series E90 318d (N47) SAL

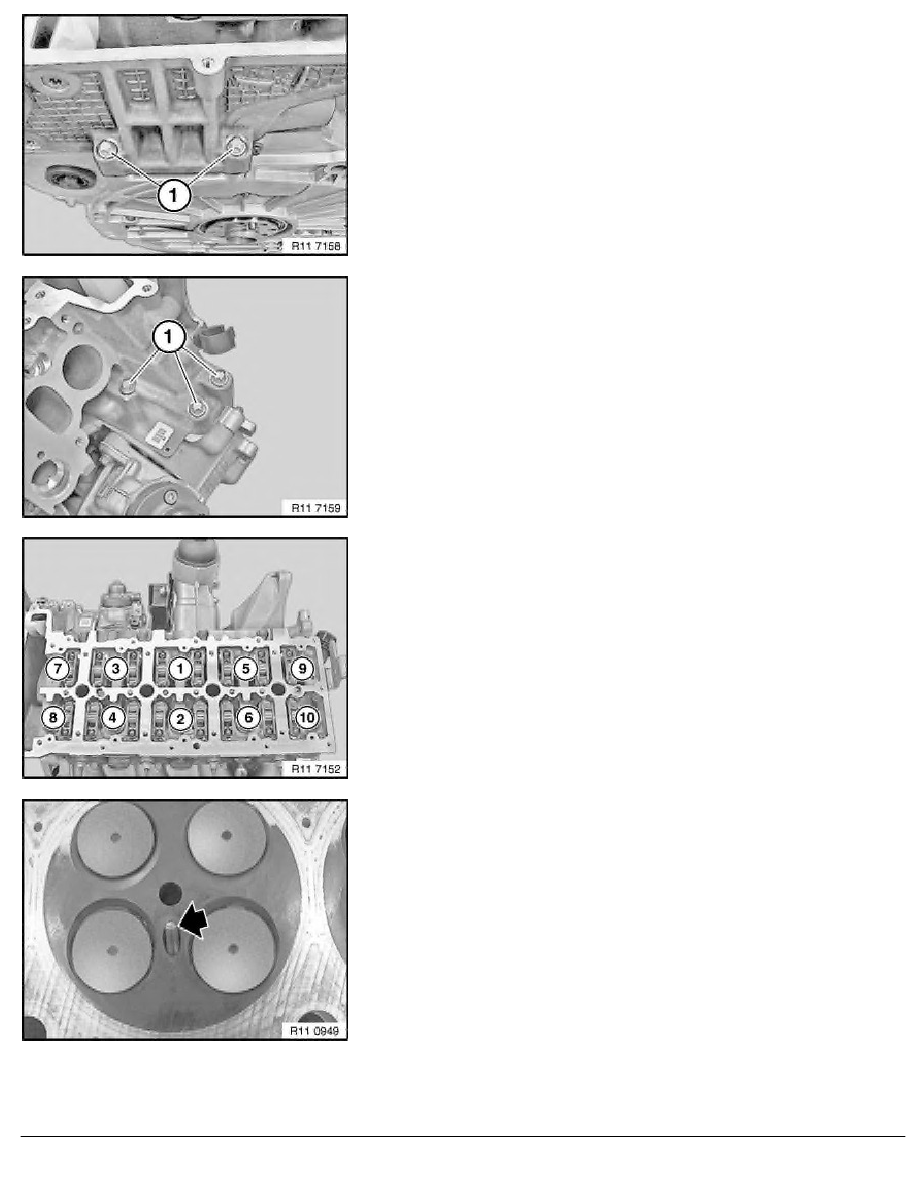

Release screws (1).
Release screws (1).
Release cylinder head bolts in sequence 10 to 1.
Important!
The glow plugs protrude at the sealing face and may be
damaged when the cylinder head is put down.
Important!
Remove cylinder head and set down in such a way that glow
plugs are not damaged.
If necessary, remove glow plugs with special tool 11 6 050 .
RA Removing and cylinder head (N47, N47S)
