5 Series E39 M5 (S62) SAL
Version from 11/99: Solenoid valves pretensioned.

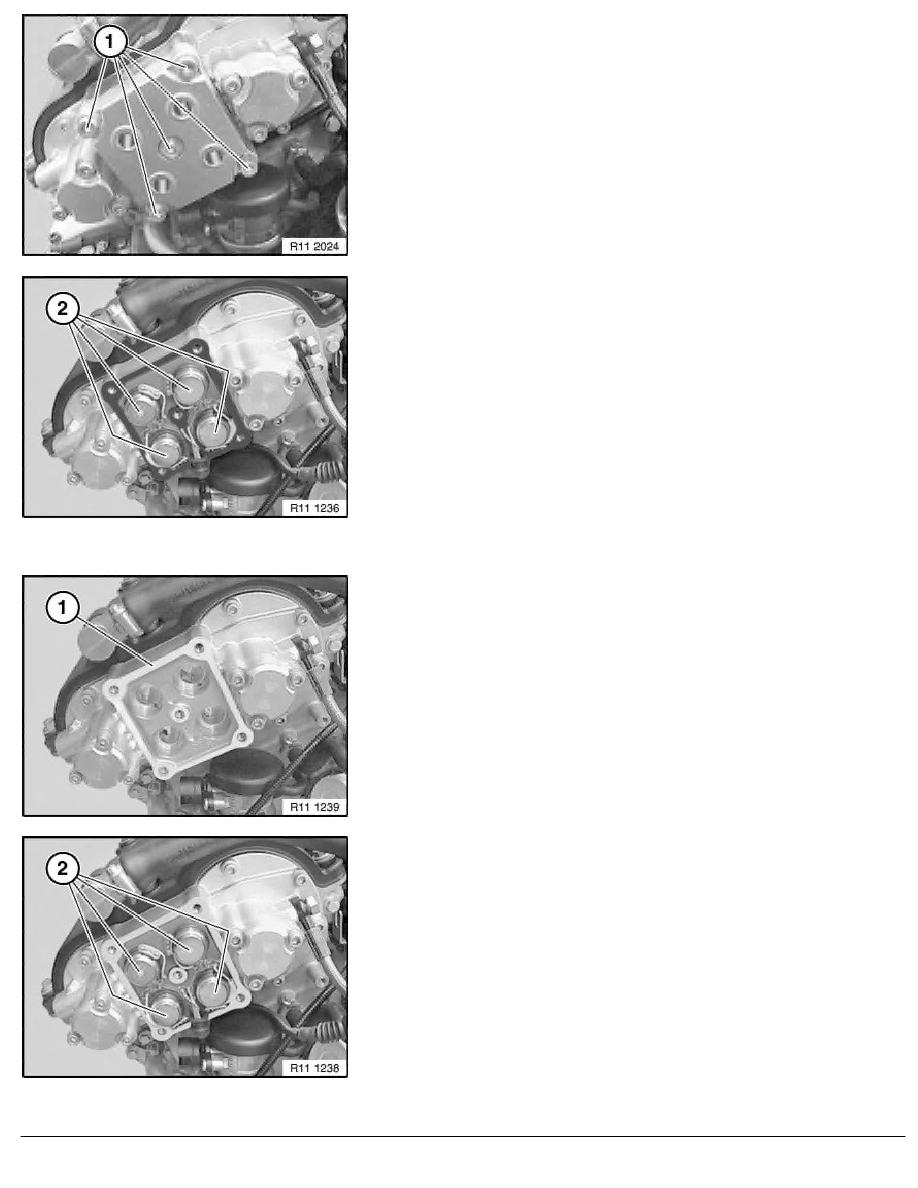

Release screws (1).
Remove cover.
Both versions:
Note:
Oil drips from the bores once the solenoid valves have been
removed. Have a cleaning cloth ready. Make sure no oil drips
onto the belt drive.
Caution!
Risk of board breakage. Do not damage cable and soldering
points.
The solenoid valves (2) can only be removed completely with the
board. Using pliers, pull on solenoid valves (2) alternately and
carefully in 1 mm steps until valves (2) are no longer secure.
Both versions:
Installation:
No gasket residue is permitted to drop into the bores.
Clean gasket residue from sealing surface (1).
Both versions:
Installation:
Lubricate sealing rings on solenoid valves (2).
Caution!
Risk of board breakage. Do not damage cable and soldering
points.
Press board at solenoid valves (2) uniformly and carefully into
VANOS adjustment unit.
RA Replacing solenoid valves on right VANOS adjustment unit (S62)
