6 Series M6 (S85) Coupe
Important!

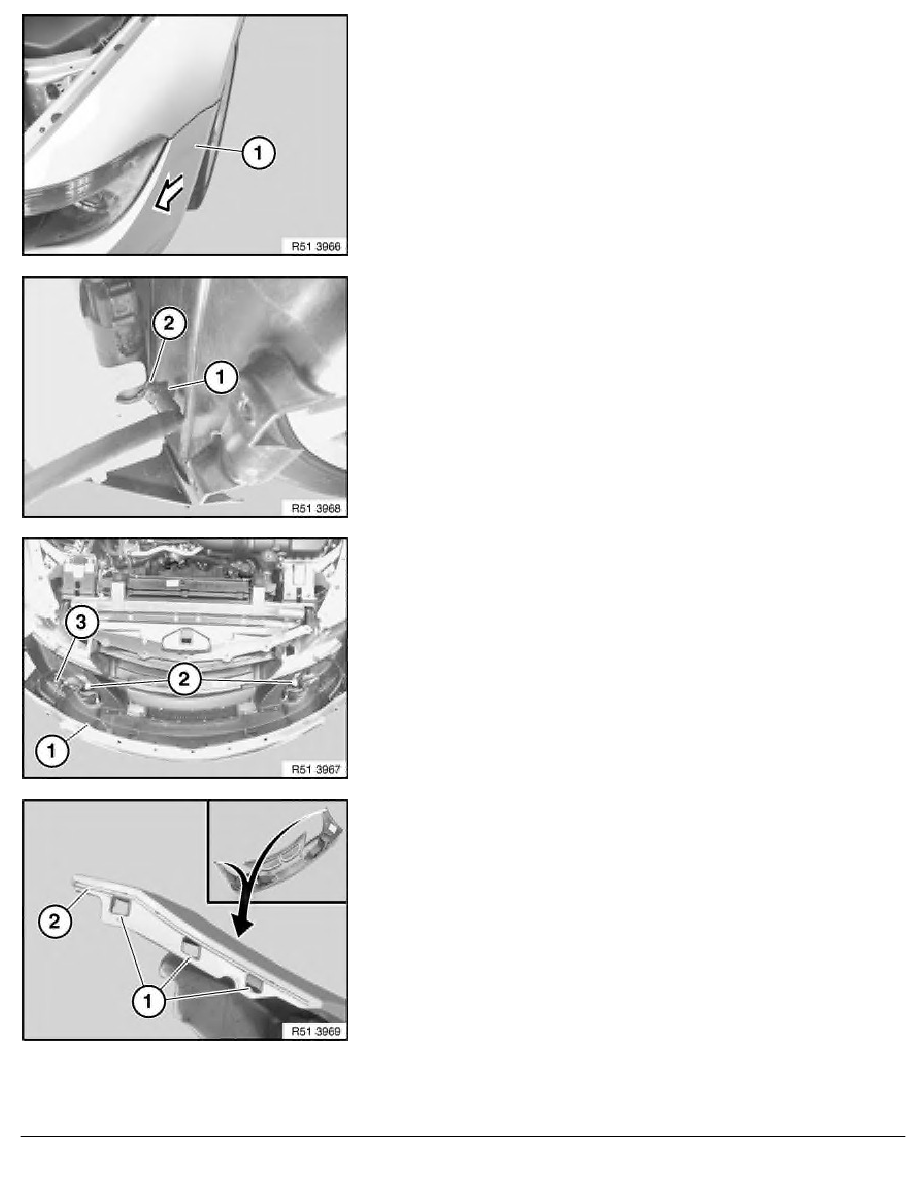

To avoid damage, unclip the bumper trim (1) in direction of
travel.
Pull bumper trim (1) in direction of arrow off side guide.
Note:
Have a rubber plug on hand.
Pull bumper trim slightly towards front (with aid of a 2nd person).
Unlock hose (1), detach and seal pump outlet (2).
If necessary, disconnect plug connection (3) at cable for
ultrasonic transducer.
Remove bumper trim (1) towards front (with aid of a 2nd person).
Installation:
Tabs (1) on bumper trim (2) must not be damaged.
RA Removing and installing front bumper trim (M6)
