Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4 (1992)
Steering Gear: Service and Repair
Rod & Rack & Cylinder Tube Assembly

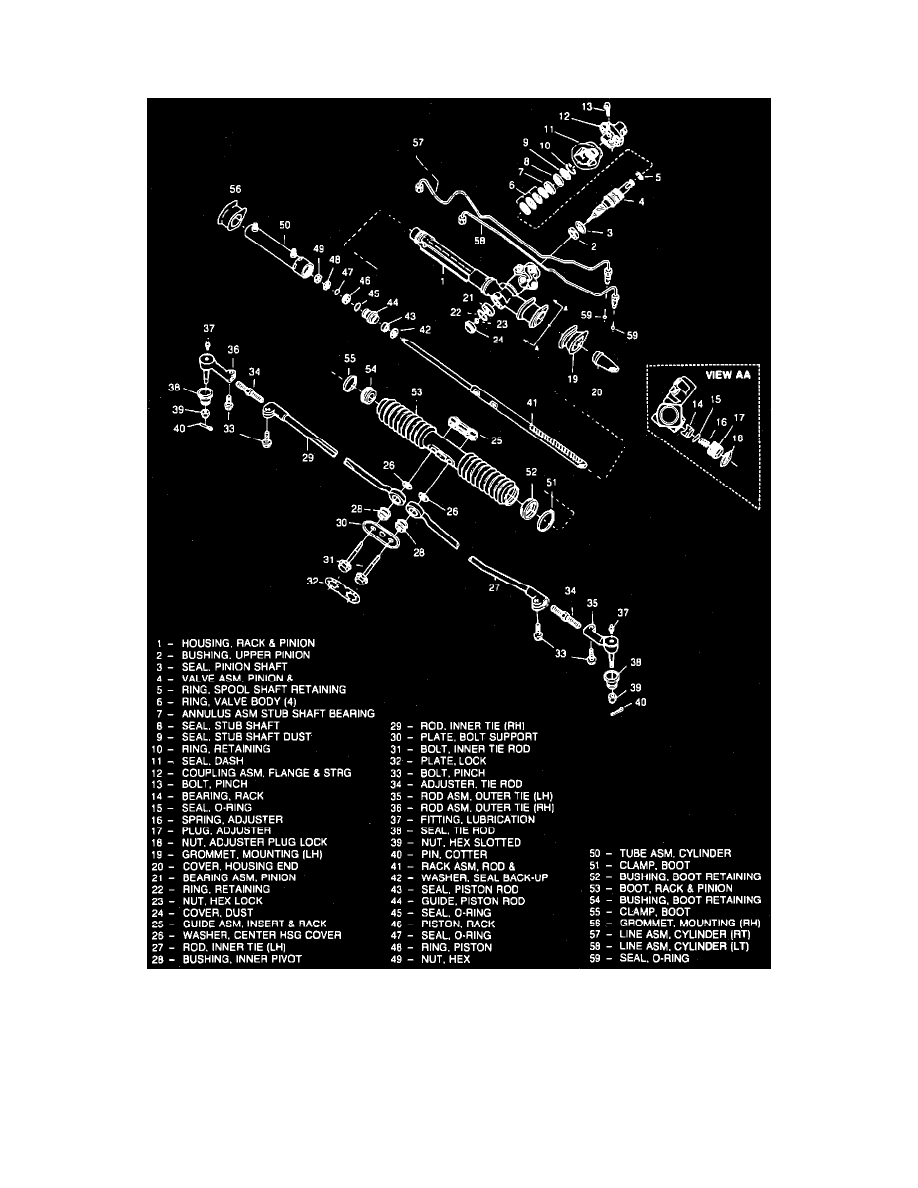

Fig. 11 Exploded View, Power Rack & Pinion Assembly. Front Wheel Fig. 11 Drive Beretta, Calais, Cavalier, Corsica, Grand Am, LeMans, Skyhawk, Skylark & Sunbird
1.
Remove dust cover from housing, Fig. 11.
2.
While holding stub shaft, remove locknut from pinion.
3.
With gear centered, mark location of stub shaft notch on housing to aid in proper installation of the pinion and valve assembly. Using a press,
press on threaded end of pinion until it is possible to remove the pinion and valve assembly from the housing.
4.
Remove stub shaft dust seal, stub shaft seal, stub shaft bearing annulus assembly, then the pinion and valve assembly with spool shaft retaining
ring and valve body rings attached.
5.
Using wrench, tool No. J 36343 or equivalent, remove cylinder tube assembly from housing. Mark location of fittings on housing before
