Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4 (1992)
Steering Shaft Coupler: Service and Repair

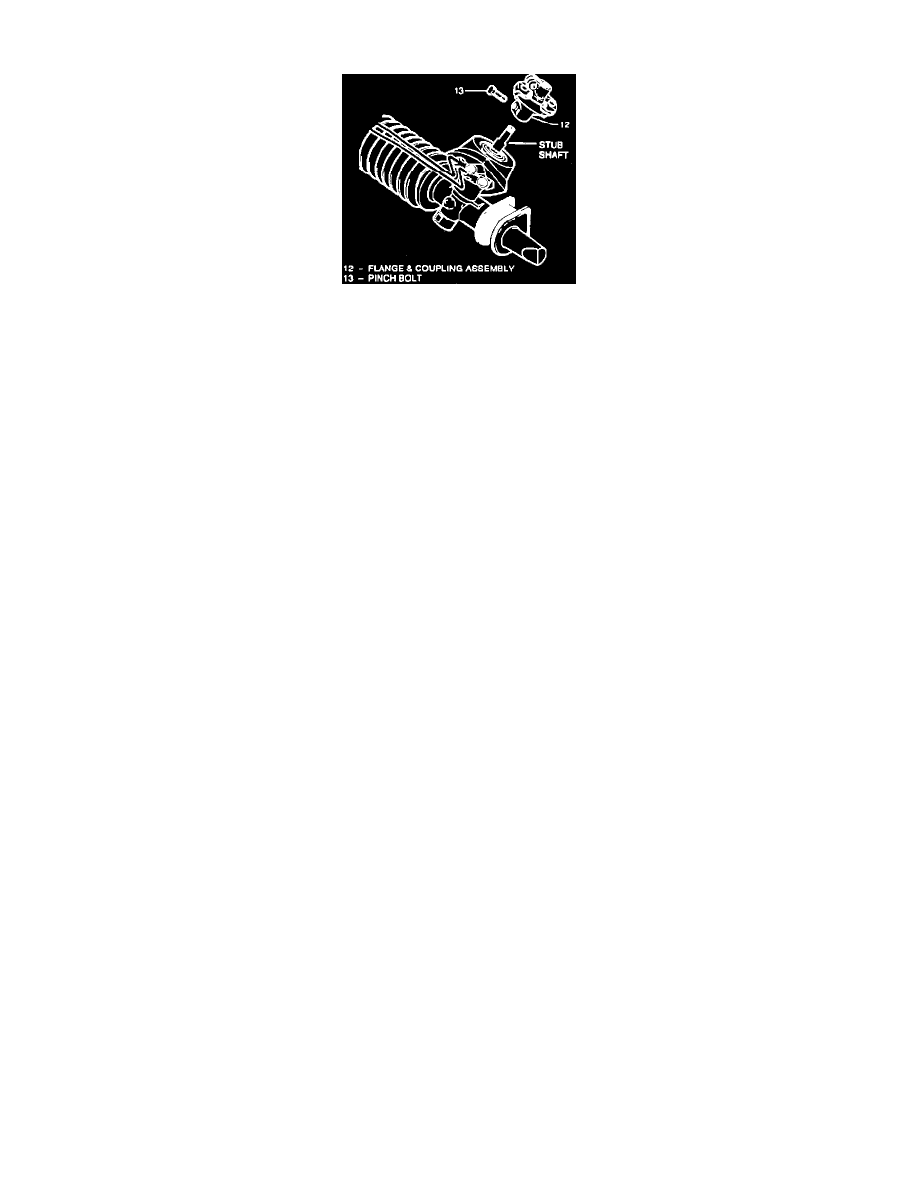

Fig. 16 Flange & Steering Coupling Assembly
1.
Remove rack and pinion assembly from vehicle.
2.
Remove pinch bolt from flange and steering coupling assembly, then coupling, Fig. 16.
3.
Reverse procedure to install. Torque pinch bolt to 29 ft. lbs.
