Skylark L4-138 2.3L SOHC VIN 3 MFI QUAD 4 (1992)
Window Regulator: Service and Repair
Electric Window Switch
Electric Window Switch
Remove or Disconnect

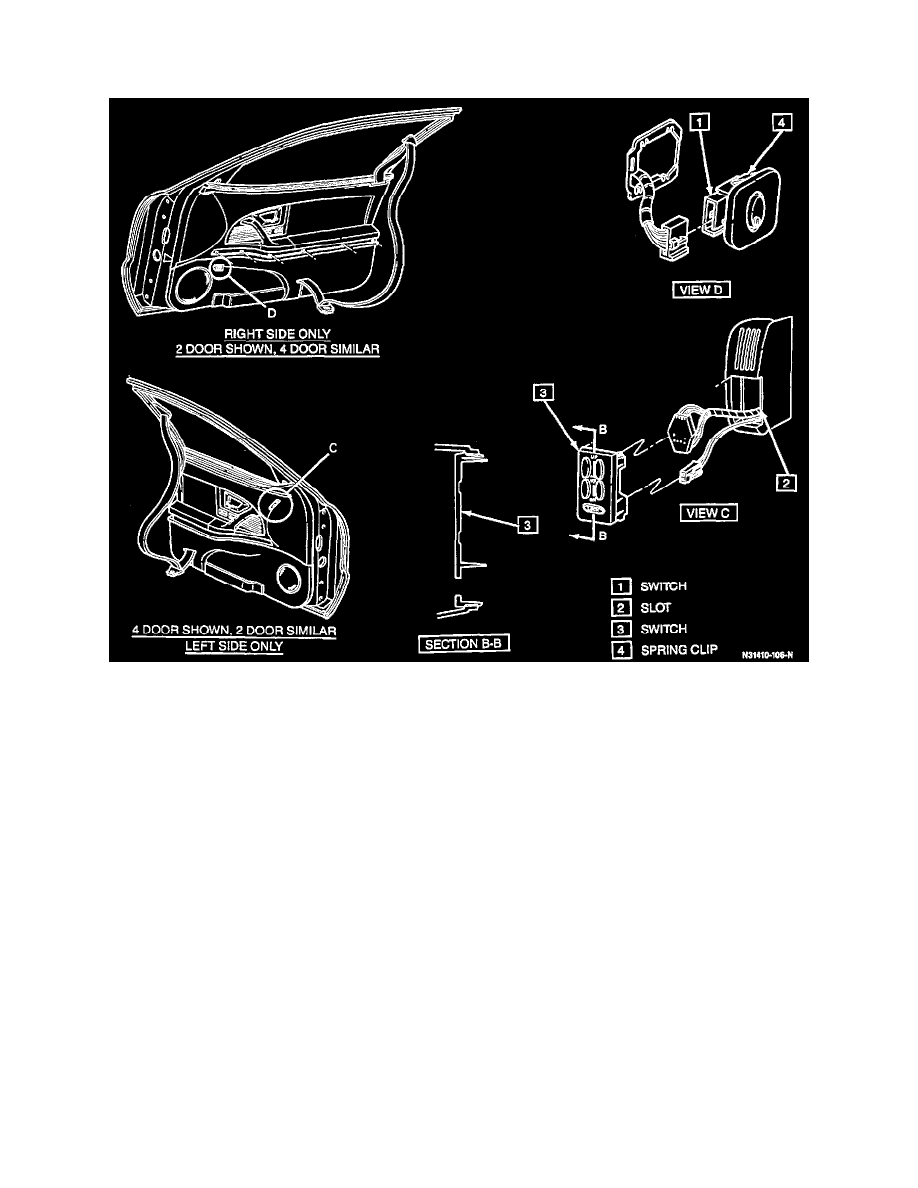

1. On right side only, release switch spring clip (4) from trim panel using a thin bladed tool inserted between the top of switch (1) and trim panel,
pushing down and out.
2. On left side only, insert a thin bladed tool in slot (2) on side of switch housing and pry switch (3) out.
3. Wiring connector from switch (1 or 3).
Install or Connect
1. Wiring connector to switch (1 or 3).
2. Align switches (1 or 3) to opening and apply pressure to secure.
