Cruze L4-1.4L Turbo (2011)

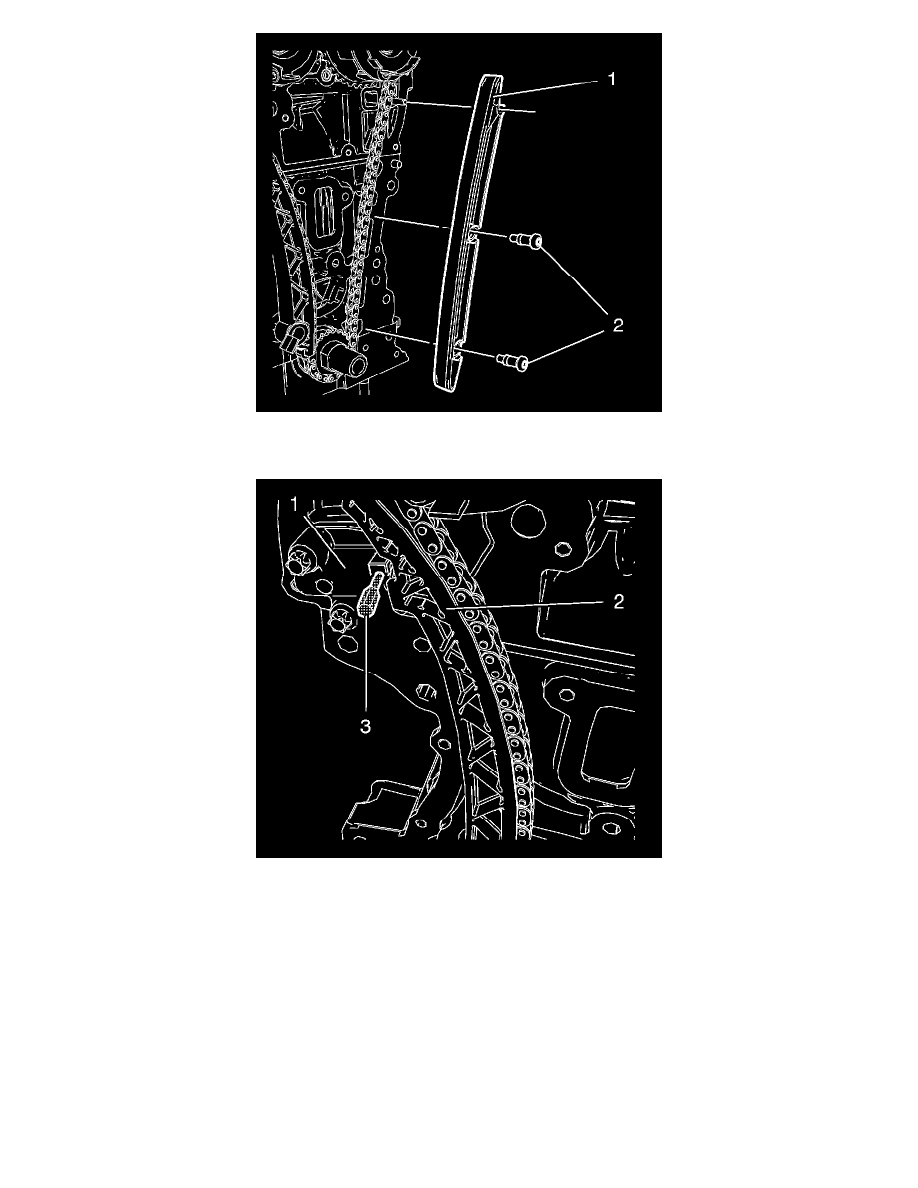

7. Install the timing chain guide right side (1).
8. Install the 2 timing chain guide right side bolts (2) and tighten to 8 Nm (71 lb in).
9. Push the timing chain (2) in direction to the timing chain tensioner (1) and Remove EN-955-1 - fixing pin (3).
10. Install the engine front cover with oil pump. Refer to Engine Front Cover with Oil Pump Replacement (See: Timing Cover/Service and Repair).
11. Close the hood.
