TrailBlazer 2WD V8-6.0L VIN H (2006)
Starting and Charging
Power and Ground Distribution
Multiple Junction Connector / Component Information
Diagrams / C100 - C199
Page 12322
Page 9

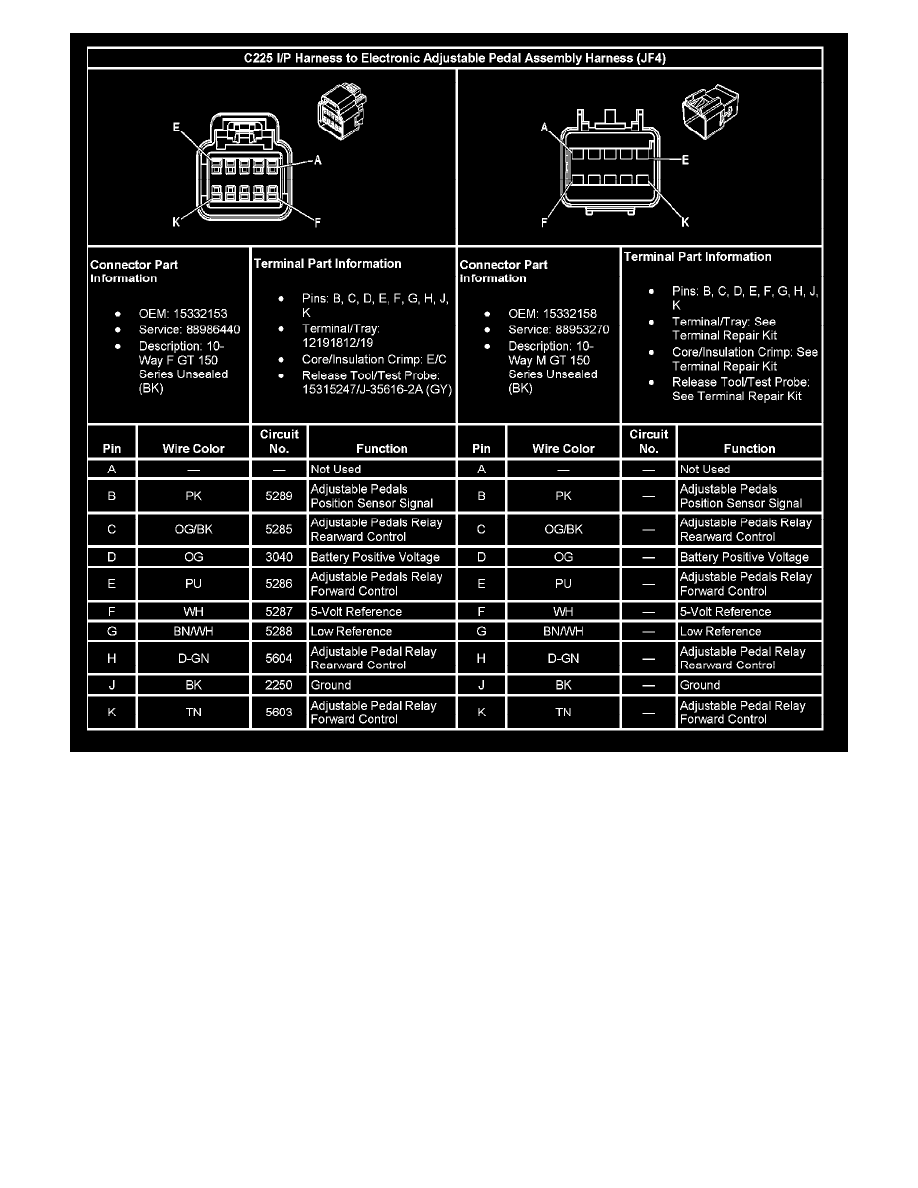

C225 I/P Harness To Electronic Adjustable Pedal Assembly Harness (With RPO Code JF4)
Starting and Charging
Power and Ground Distribution
Multiple Junction Connector / Component Information
Diagrams / C100 - C199
Page 12322
