Town & Country Van AWD V6-230 3.8L VIN L SMFI (1998)
Upper Duct Trim
12. Remove rear upper duct trim screw.

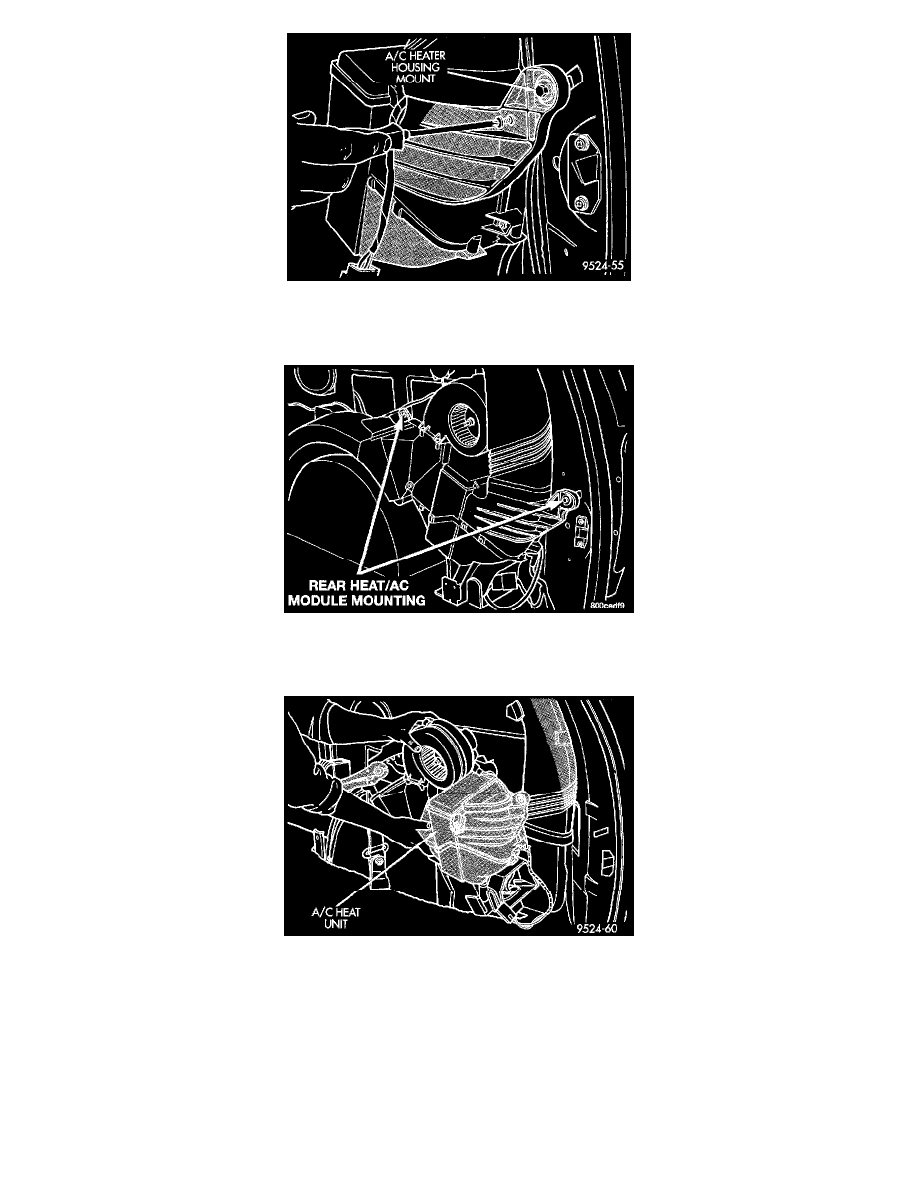

Mounting Bolts
13. Remove (2) Heater-A/C housing mounting bolts.
A/C Unit Replacement
14. Pull up on upper A/C duct. Tilt A/C unit outward.
15. Lift the unit enough to clear floor pan. Remove unit from the vehicle.
INSTALLATION
