Challenger V6-3.5L (2009)

Page 1
background image

Antenna - Keyless Entry: Diagrams

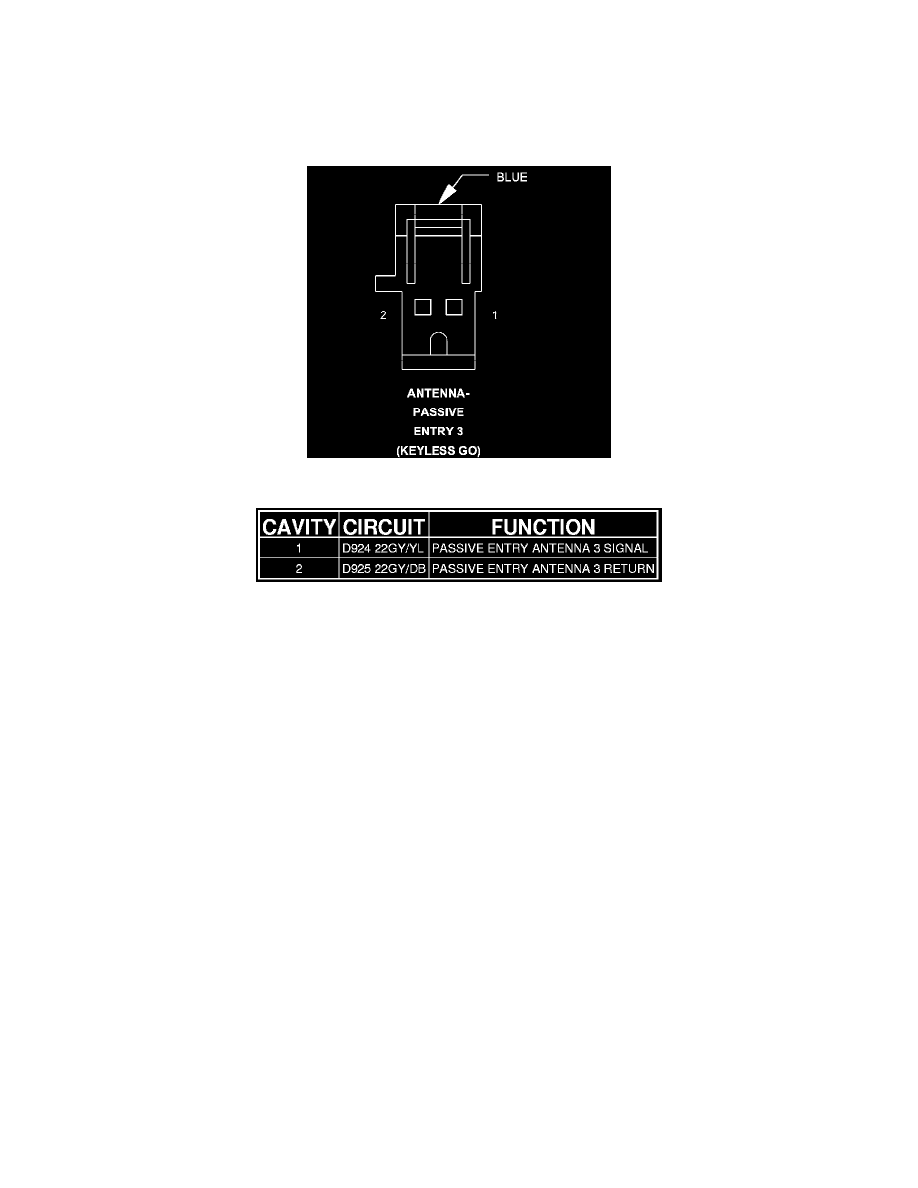

Passive Entry Antenna 3 (Keyless Go) (Instrument Panel) 2 Way

Connector (KEYLESS GO) - (INSTRUMENT PANEL) 2 WAY



 ANTENNA-PASSIVE ENTRY 3 (KEYLESS GO) - (INSTRUMENT PANEL) 2 WAY
