Challenger V6-3.5L (2009)

Page 1
background image

Power Distribution Module: Diagrams

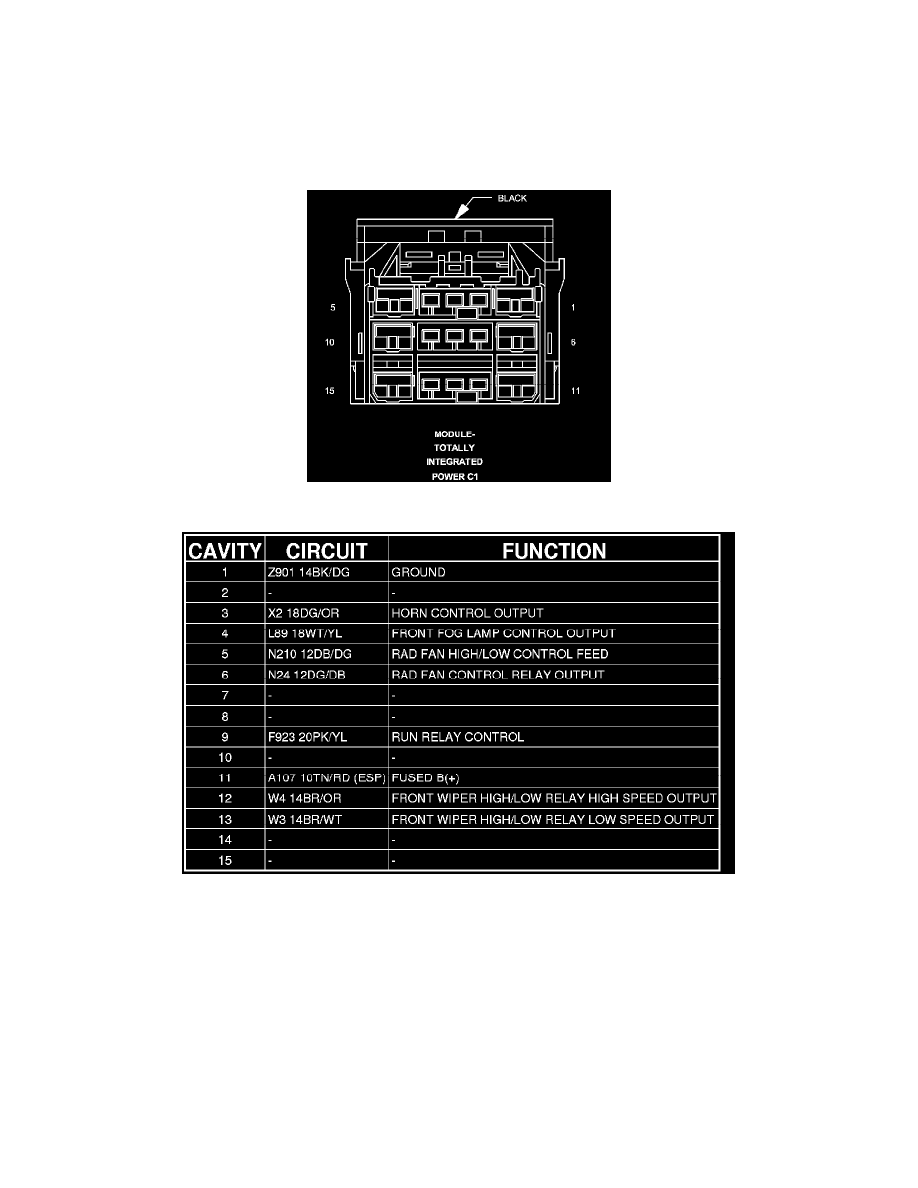

Module - Totally Integrated Power  C1

Connector C1 - (HEADLAMP AND DASH) 15 WAY



 MODULE-TOTALLY INTEGRATED POWER - (HEADLAMP AND DASH) 15 WAY

Module - Totally Integrated Power  C2

Connector C2 - (HEADLAMP AND DASH) 26 WAY
