Magnum V8-5.7L VIN 2 (2007)

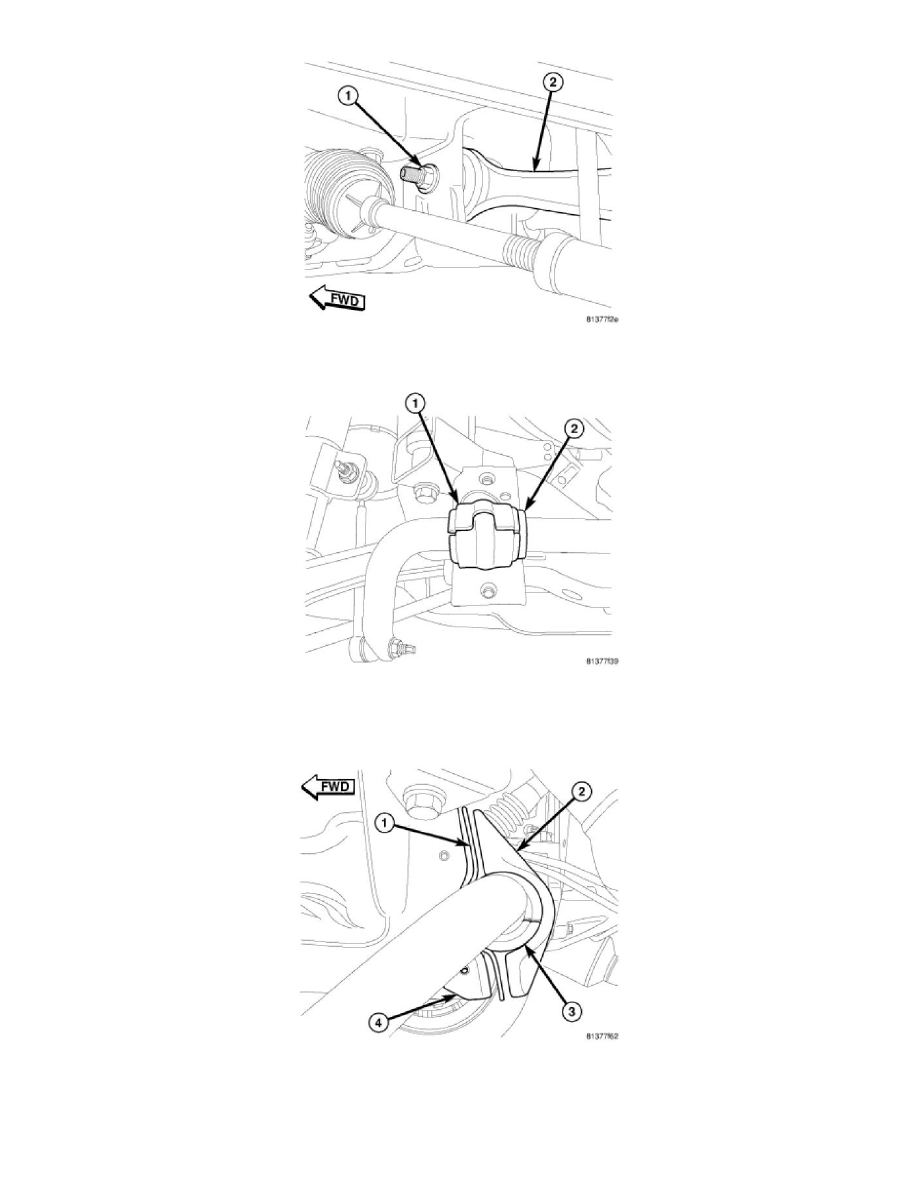

12. Once camber is found to be within specifications, using a crowfoot wrench, tighten lower control arm cradle bolt nut (1) to 176 Nm (130 ft. lbs.)
while holding the bolt stationary.
CAUTION: Because of stabilizer bushing outer shape, it is very important to install bushings in position discussed in following step.
13. Utilizing slit in bushing, install stabilizer bar bushing (1) against locating collar on stabilizer bar (2) as shown. Make sure slit in bushing is
positioned toward rear of vehicle.
14. Install stabilizer bar bushing retainer halves (1)(2) around bushing (3).
