Contour V6-153 2.5L DOHC (1996)

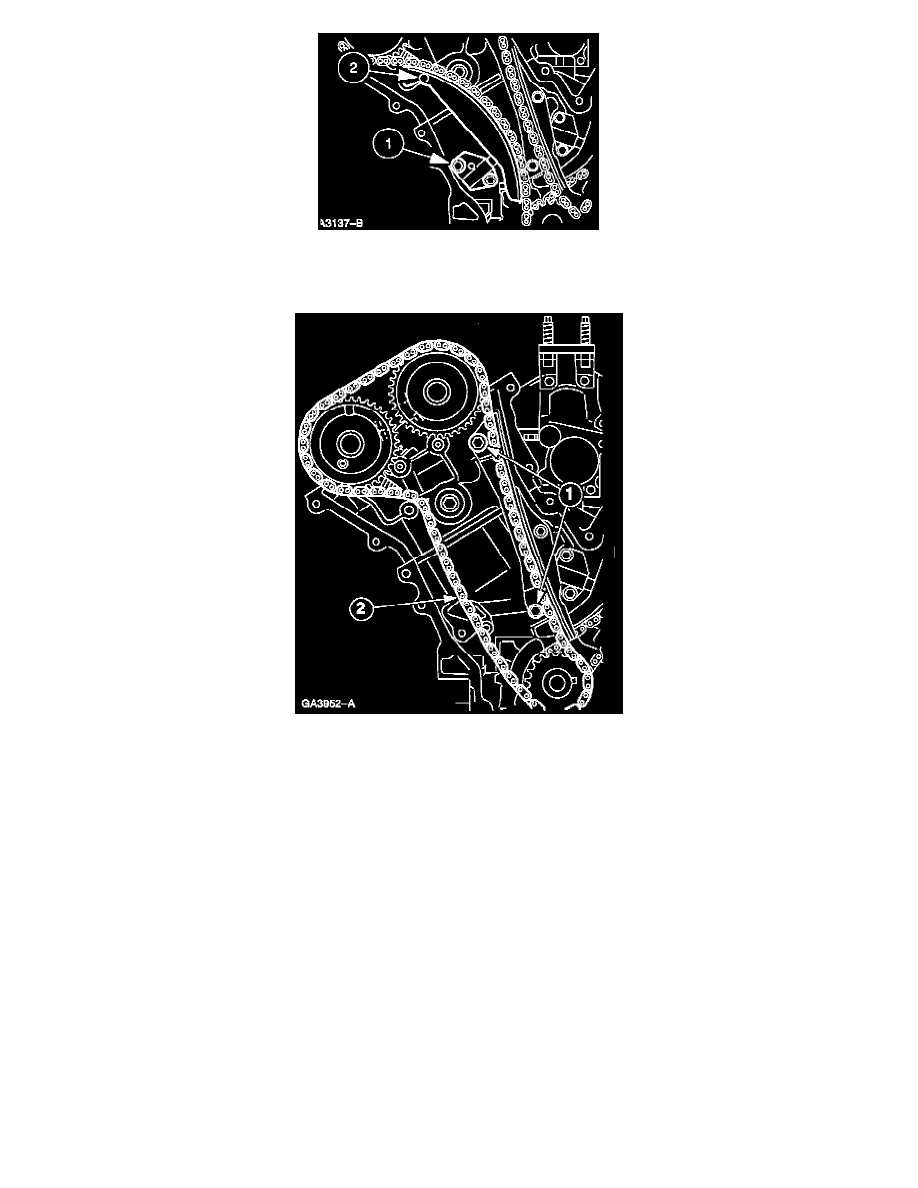

8. Remove the RH chain tensioner and tensioner arm.
1
Remove the bolts and the chain tensioner.
2
Remove the tensioner arm.
9. Remove the RH timing chain.
1
Remove the bolts and the timing chain guide.
2
Remove the RH timing chain.
CAUTION: The cylinder head and the camshaft bearing caps are numbered to make sure they are reassembled in their original position. When
removed, keep the bearing caps with the cylinder head they were removed from. Do not mix the caps.
NOTE:
-
Remove the camshaft bearing thrust caps Nos. 1 and 5 first. Do not loosen any of the other bolts until the thrust caps are removed.
-
Camshaft bearing caps are dowelled to cylinder head. If necessary use a plastic mallet to loosen the caps.
