Safety Belt Shoulder Height Adjuster With Stripped Weld Nuts|Page 6448 > < Safety Belt Shoulder Height Adjuster With Stripped Weld Nuts
Page 2
background image

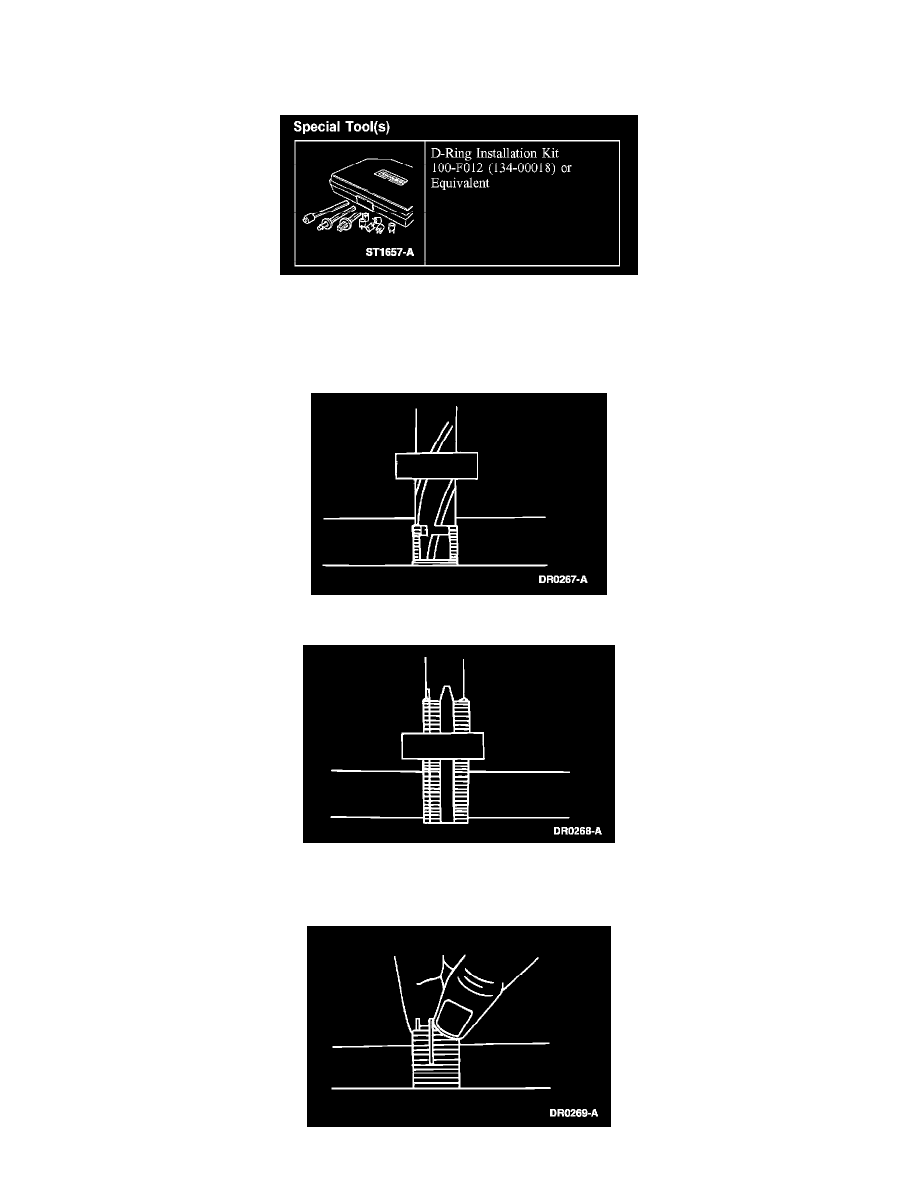

4. Use a threaded insert provided in the D-Ring Installation Kit and screw it into the retapped hole until it is slightly below the surface.

5. Use a hammer to lightly tap the installation tool provided in the D-Ring Installation Kit several times to seat the insert keys.

6. NOTE:  If the shoulder safety belt height adjuster retaining bolts are stripped, install a new shoulder safety belt height adjuster and retaining bolts.

Install the shoulder safety belt height adjuster.
