Explorer AWD V8-4.6L (2010)
Control Assembly: Service and Repair

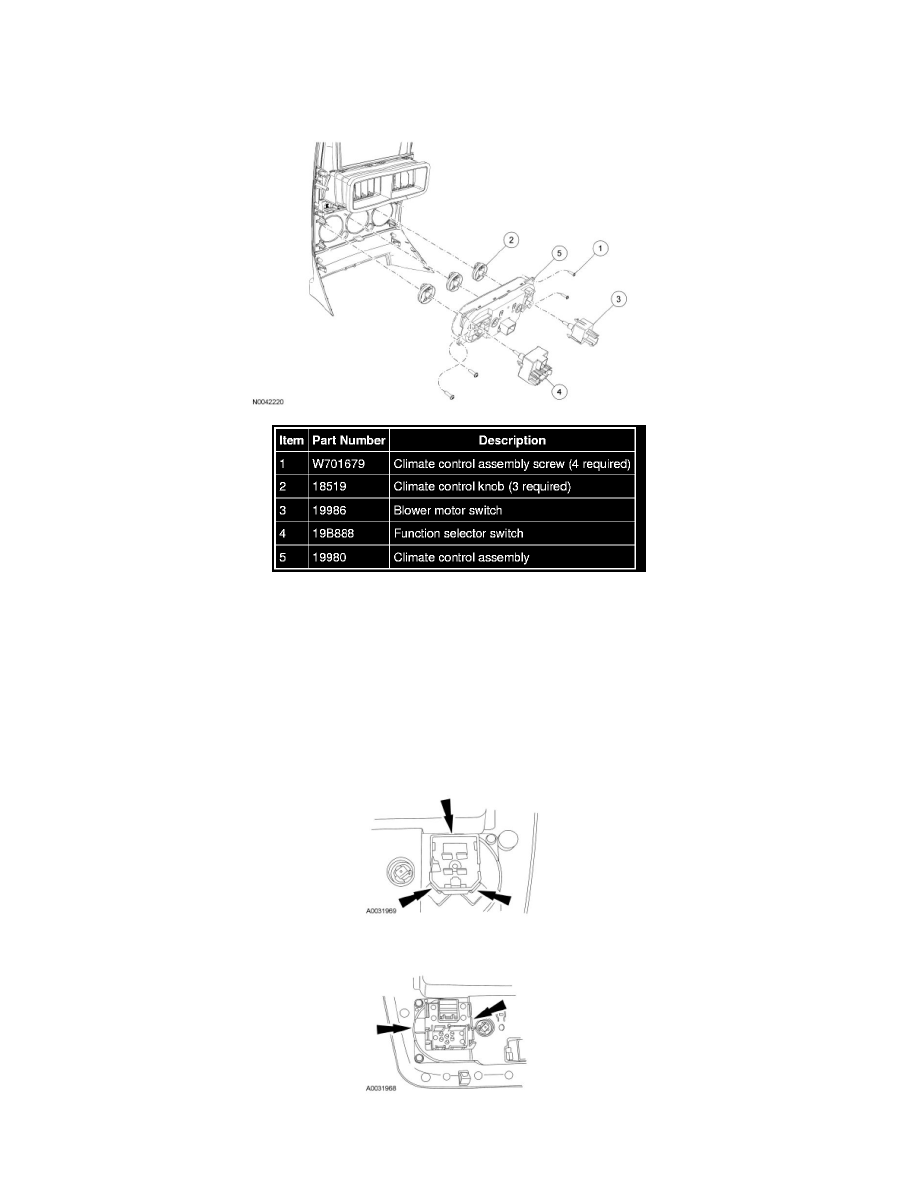

Climate Control Assembly
Climate Control Assembly
Removal and Installation
1. Remove the center instrument panel finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.
2. Remove the 4 climate control assembly screws.
3. Remove the climate control assembly.
4. Remove the 3 climate control knobs.
5. Depress the tabs and remove the blower motor switch.
6. Depress the tabs and remove the function selector switch.
7. To install, reverse the removal procedure.
