Page 8
background image

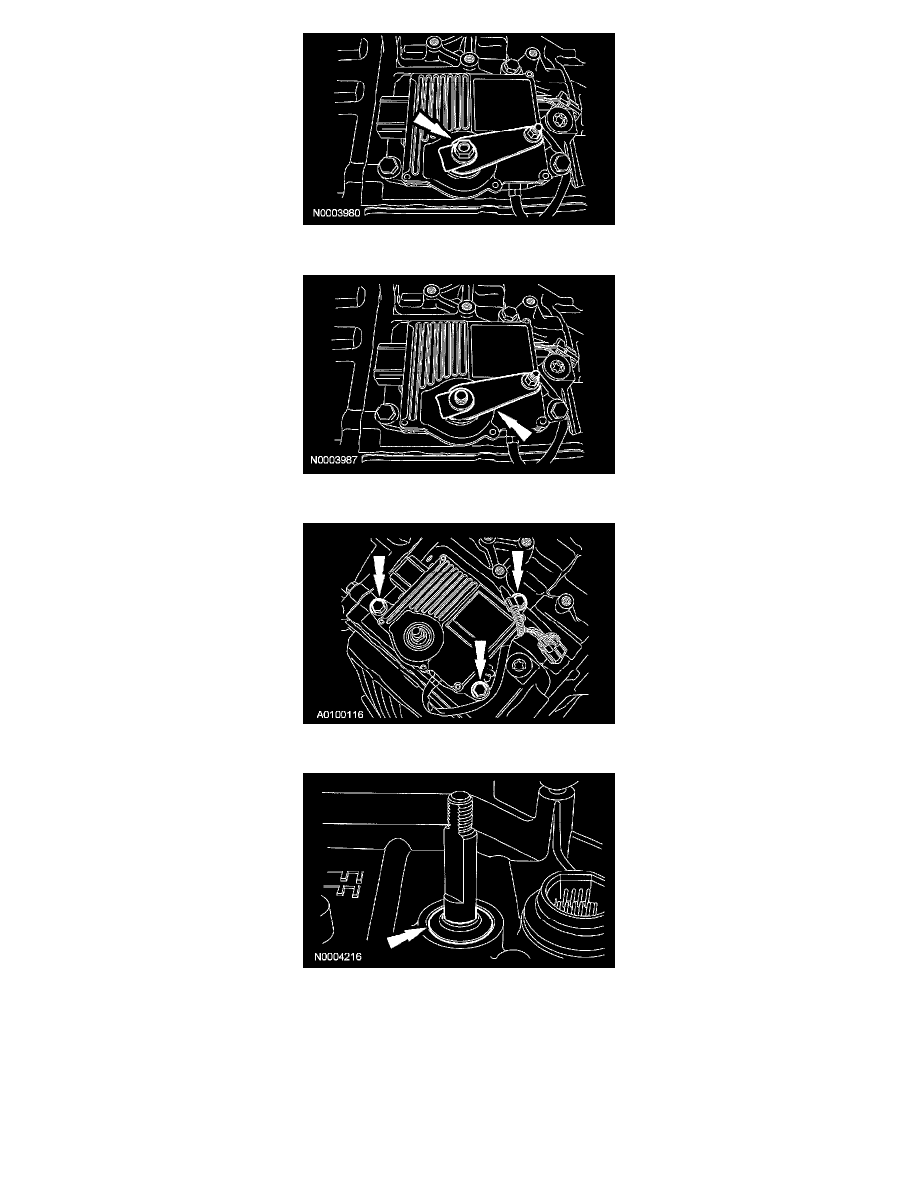

7. Remove the manual control lever.

8. Remove the bolts and remove the TCM.

9. Using a suitable pick, remove the manual control lever seal.

Installation

1. Using the special tool, install the manual control lever seal.
